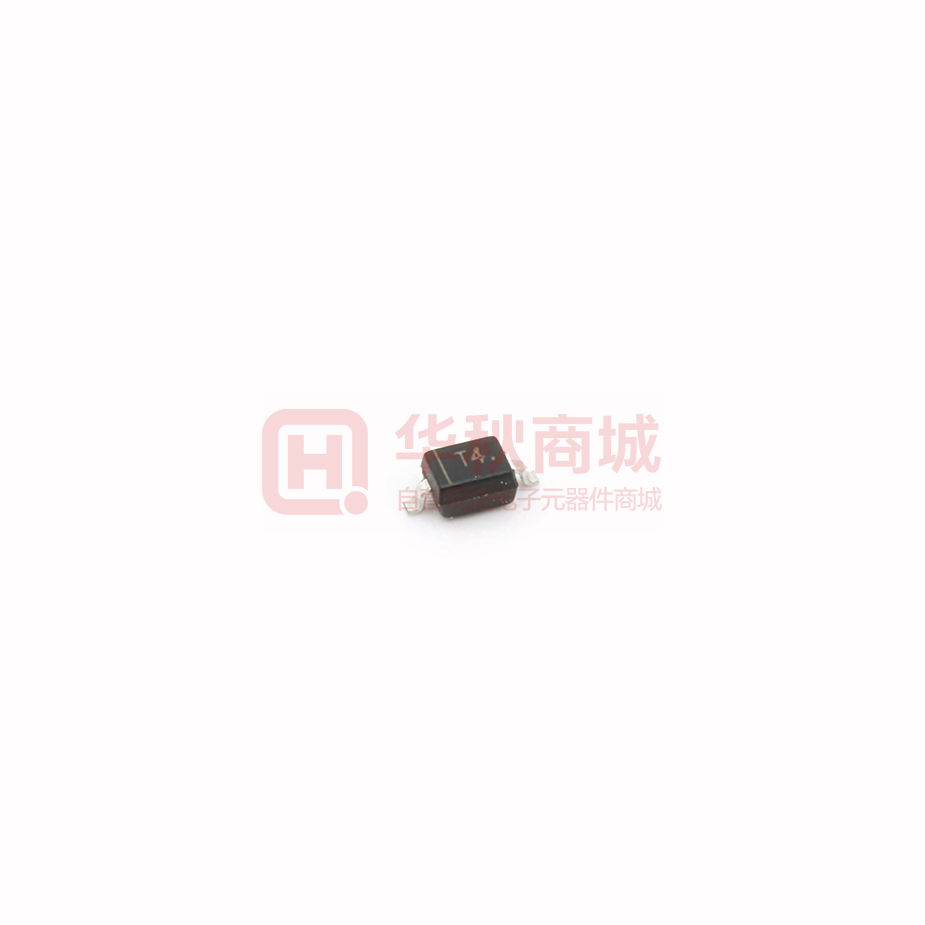

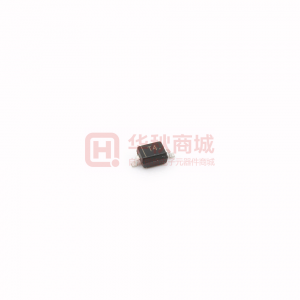

Images are for reference only

1N4148WS

  • Mfr Part #1N4148WS
  • ManufacturerSk(台湾时科)
  • HQ Part #UN0002158
  • PackageSOD323
  • Lead Time Ship immediately
  • DescriptionSwitching Diodes (Small Signal) VR=75V IF=150mA Trr=4ns P=200mW SOD323

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Maximum Dissipated Power200mW
Reverse Peak Voltage (Maximum)75V
Diode ConfigurationSingle
Operating Temperature-65℃~150℃
Reverse Withstand Voltage Vr75V
Average Rectified Current150mA
Forward Voltage Drop Vf1.25V
Reverse Recovery Time (trr)4ns
Reverse Leakage Current Ir1µA
Package / CaseSOD323
Installation TypeSMT
Forward Voltage VF Max1.25V
Ifsm - Peak Forward Surge Current2A
Breakdown Voltage75V
Partlife CycleActive
Storage Temperature-65~+150℃
Lead Quantity2pin
Height1.05mm
L x W/Size1.80 x 1.40mm
Country of OriginChina Taiwan
Original ManufacturerTaiwan Shikues Electronics Co., Ltd.
BrandSK
Application-
Forward Current300mA
Total Capacitance C2pF
Series-
Part StatusActive
Lead Free Or NotYes
