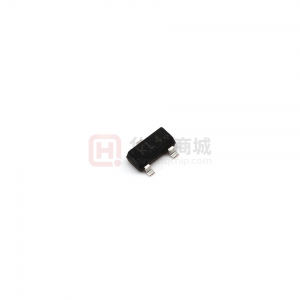

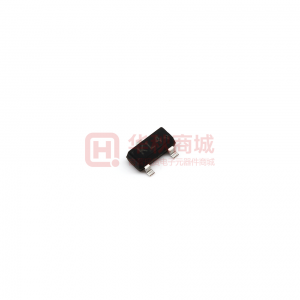

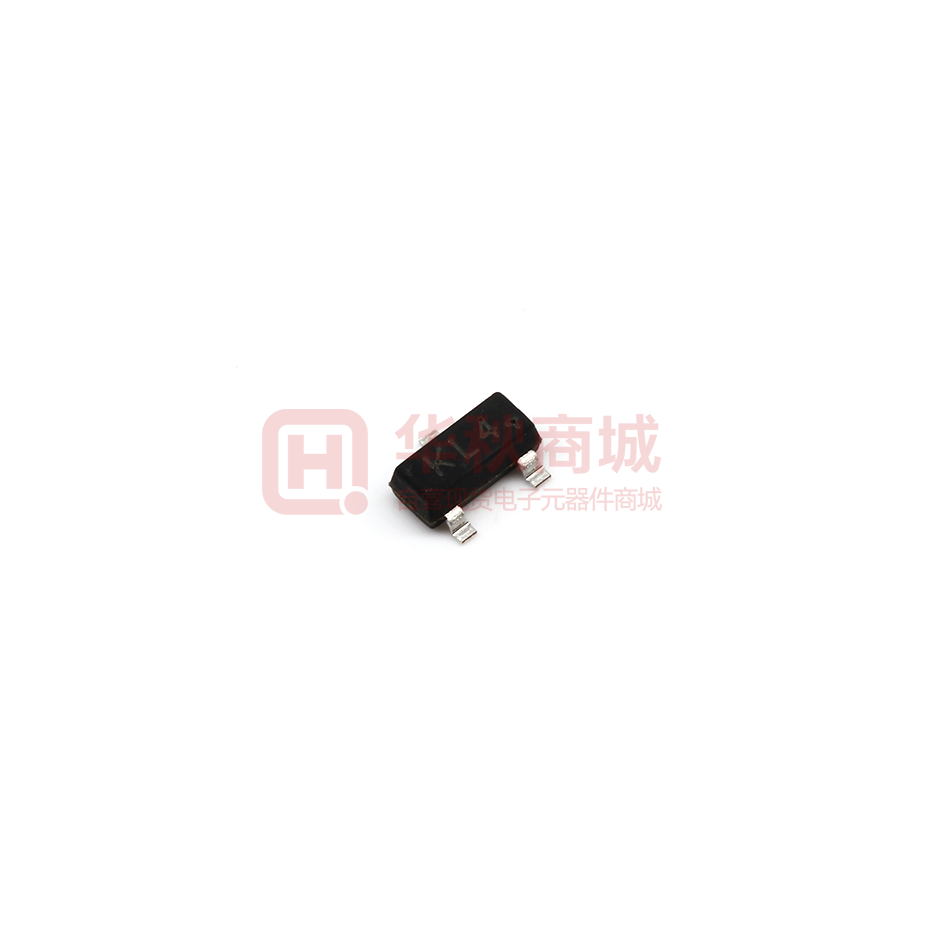

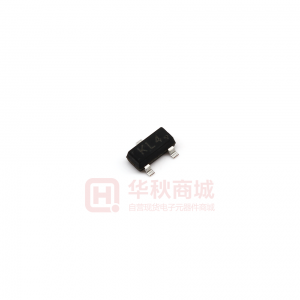

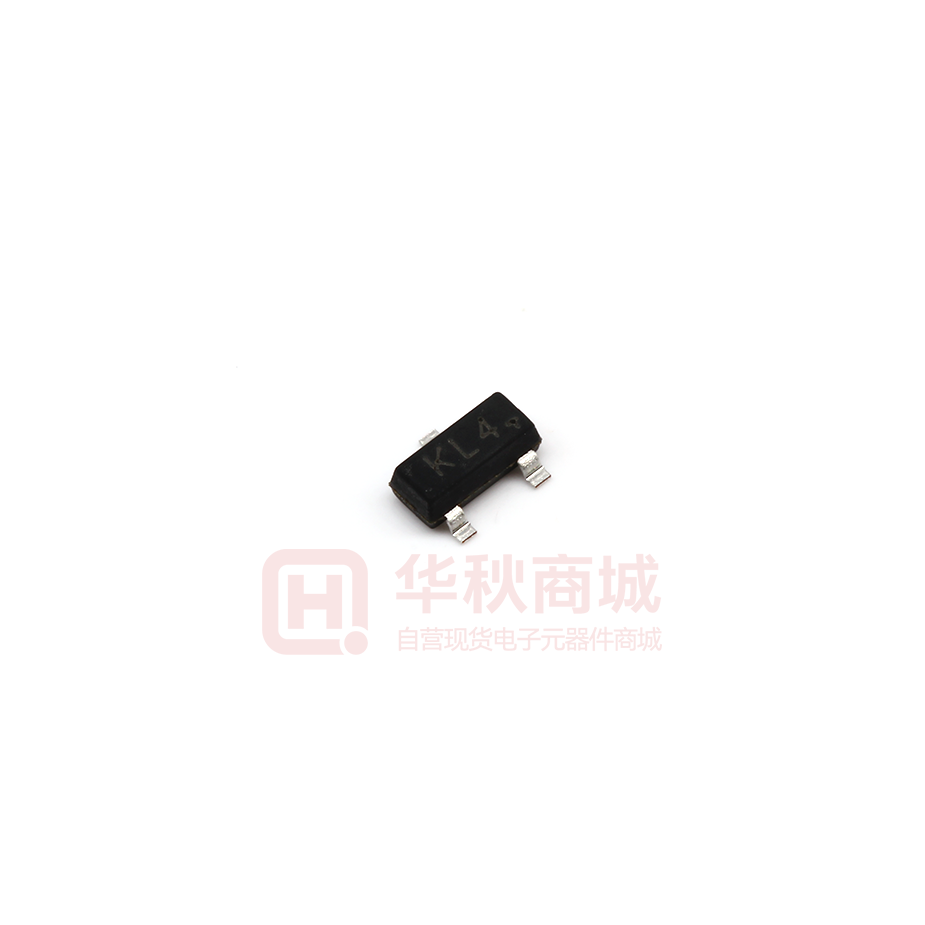

BAT54S
- Mfr Part #BAT54S
- ManufacturerHottech
- HQ Part #DS0137963
- PackageSOT-23
- Lead Time Ship immediately
DescriptionSchottky Diode Common Anode VR=30V IF=200mA IR=2μA CT=10pF SOT23
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Maximum Dissipated Power | 200mW | |
| Reverse Peak Voltage (Maximum) | 30V | |
| Diode Configuration | Dual,Series | |
| Operating Temperature | +125℃(TJ) | |
| Diode Type | Schottky | |
| Reverse Withstand Voltage Vr | 30V | |
| Average Rectified Current | 200mA | |
| Forward Voltage Drop Vf | 1V | |
| Reverse Recovery Time (trr) | 5ns | |
| Reverse Leakage Current Ir | 2µA | |
| Installation Type | SMT | |
| Junction Capacitance | 10pF | |
| Vf(Max Instantaneous Forward Voltage) | 1V | |
| Ifsm - Peak Forward Surge Current | 600mA | |
| Breakdown Voltage | 30V | |
| Partlife Cycle | Active | |
| Storage Temperature | -55~+150℃ | |
| Lead Quantity | 3Pin | |
| Height | 1.15mm | |
| L x W/Size | 2.90 x 1.30mm | |
| Country of Origin | China | |
| Original Manufacturer | Guangdong Hottech Co. Ltd. | |
| Brand | Hottech | |
| Application | - | |
| Forward Current | 200mA | |
| Part Status | Active | |
| Lead Free Or Not | Yes |
