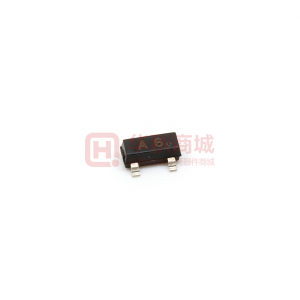

Images are for reference only

BAS16

  • Mfr Part #BAS16
  • ManufacturerHottech
  • HQ Part #DS0140097
  • PackageSOT-23
  • Lead Time Ship immediately
  • DescriptionSwitching Diodes (Small Signal) VR=75V IF=300mA Trr=6ns P=225mW SOT23

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Maximum Dissipated Power225mW
Reverse Peak Voltage (Maximum)100V
Diode ConfigurationSingle
Operating Temperature+150℃(TJ)
Reverse Withstand Voltage Vr75V
Average Rectified Current150mA
Forward Voltage Drop Vf1V
Reverse Recovery Time (trr)6ns
Reverse Leakage Current Ir1µA
Installation TypeSMT
Forward Voltage VF Max1V
Ifsm - Peak Forward Surge Current2A
Breakdown Voltage75V
Partlife CycleActive
Storage Temperature-55~+150℃
Lead Quantity3Pin
Height1.15mm
L x W/Size2.90 x 1.30mm
Country of OriginChina
Original ManufacturerGuangdong Hottech Co. Ltd.
BrandHottech
Application-
Forward Current300mA
Total Capacitance C2pF
Series-
Part StatusActive
Lead Free Or NotYes
