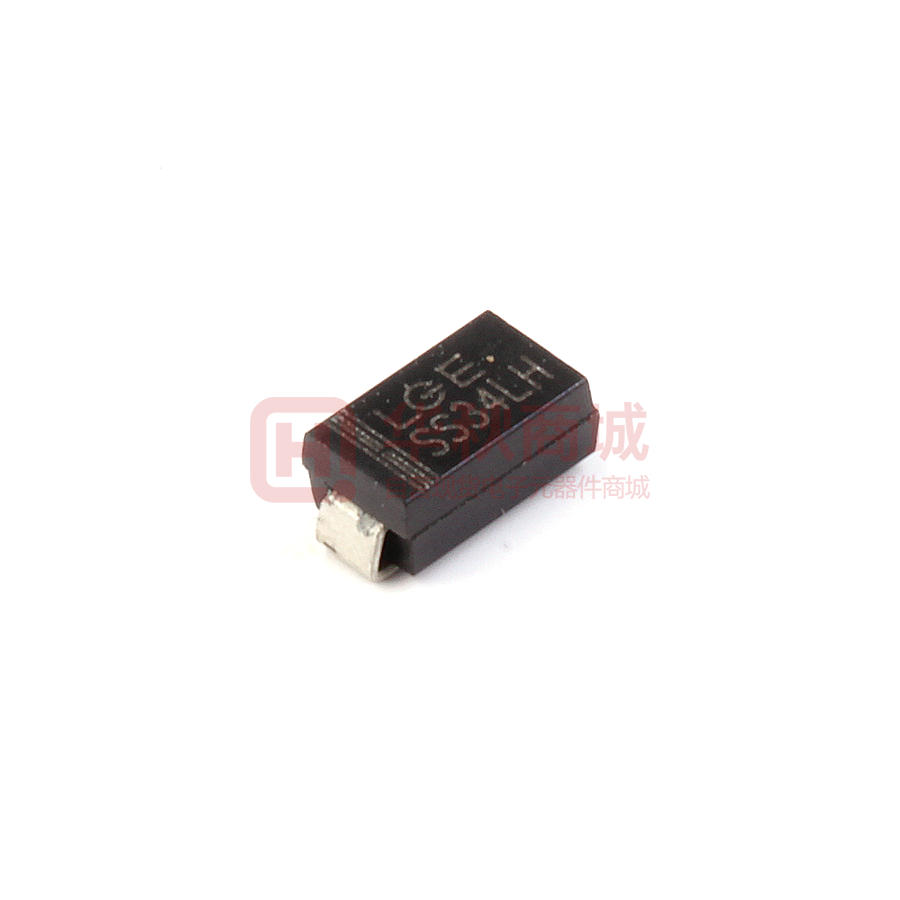

Images are for reference only

SS34LH

  • Mfr Part #SS34LH
  • ManufacturerLGE
  • HQ Part #DS0139836
  • PackageSMA(DO214AC)
  • Lead Time Ship immediately
  • DescriptionSchottky Diode Single VR=40V IF=3A IR=500μA CJ=250pF SMA

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Reverse Peak Voltage (Maximum)40V
Diode ConfigurationSingle
Operating Temperature-55℃~150℃
Diode TypeSchottky
Reverse Withstand Voltage Vr40V
Average Rectified Current3A
Reverse Recovery Time (trr)-
Package / CaseSMA
Installation TypeSMT
Junction Capacitance250pF
Vf(Max Instantaneous Forward Voltage)450mV
Ifsm - Peak Forward Surge Current125A
Partlife CycleActive
Storage Temperature-55~+175℃
Lead Quantity2pin
Height2.50mm
L x W/Size4.60 x 2.90mm
Country of OriginChina
Original ManufacturerLuguang Electronic Technology Co., Ltd.
BrandLGE
Forward Current3A
Part StatusActive
Lead Free Or NotYes
