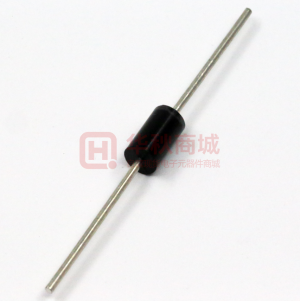

SR540

  • Mfr Part #SR540
  • ManufacturerLGE
  • HQ Part #DS0139818
  • PackageDO-201AD
  • Lead Time Ship immediately
  • DescriptionSchottky Diode Single VR=40V IF=5A IR=500μA Cj=250pF DO27

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Reverse Peak Voltage (Maximum)40V
Diode ConfigurationSingle
Operating Temperature-65~+150℃(TJ)
Diode TypeSchottky
Reverse Withstand Voltage Vr40V
Average Rectified Current5A
Reverse Recovery Time (trr)-
Reverse Leakage Current Ir500µA
Package / CaseDO-201AD
Installation TypeDIP
Forward Voltage VF Max550mV
Ifsm - Peak Forward Surge Current120A
Partlife CycleActive
Storage Temperature-65~+150℃
Lead Quantity2pin
Height9.50mm
L x W/SizeΦ5.60 x 9.50mm
Country of OriginChina
Original ManufacturerLuguang Electronic Technology Co., Ltd.
BrandLGE
Total Capacitance C250pF
Part StatusActive
