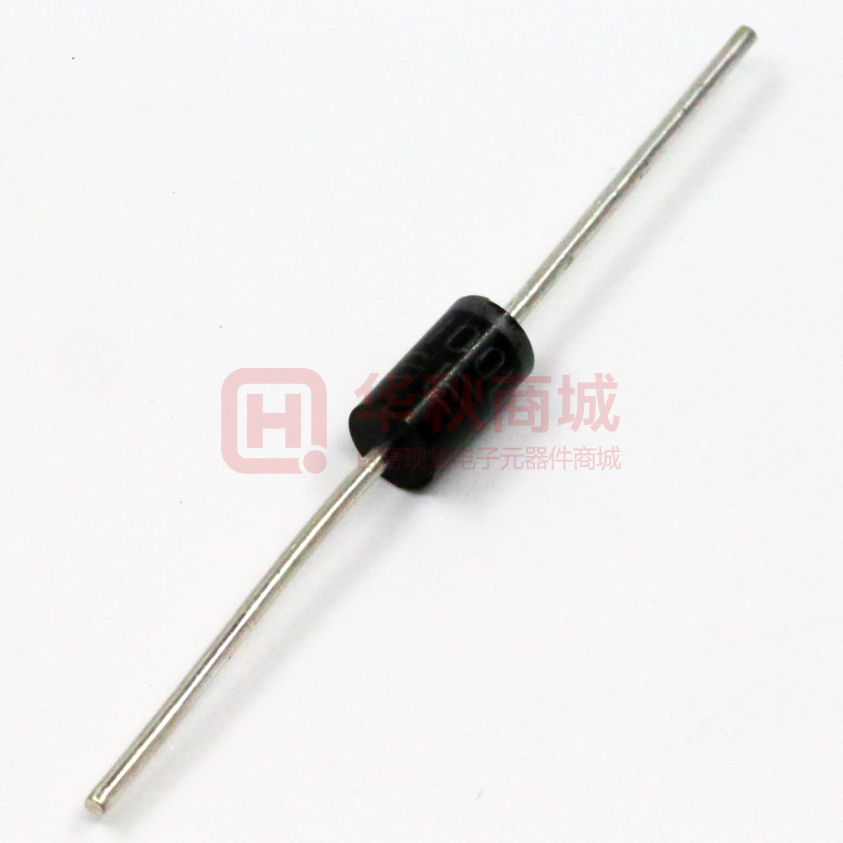

Images are for reference only


  • Mfr Part #SR5100L
  • ManufacturerLGE
  • HQ Part #DS0139811
  • PackageDO-201AD
  • Lead Time Ship immediately
  • DescriptionSchottky Diode Single VR=100V IF=5A IR=100μA CJ=350pF DO27

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Reverse Peak Voltage (Maximum)100V
Diode ConfigurationSingle
Operating Temperature-55~+150℃(TJ)
Diode TypeSchottky
Reverse Withstand Voltage Vr100V
Average Rectified Current5A
Reverse Recovery Time (trr)-
Reverse Leakage Current Ir100µA
Package / CaseDO-201AD
Installation TypeDIP
Junction Capacitance350pF
Vf(Max Instantaneous Forward Voltage)720mV
Ifsm - Peak Forward Surge Current140A
Partlife CycleActive
Storage Temperature-55~+150℃
Lead Quantity2pin
L x W/SizeΦ5.60 x 9.50mm
Country of OriginChina
Original ManufacturerLuguang Electronic Technology Co., Ltd.
Forward Current5A
Total Capacitance C350pF
Part StatusActive
Lead Free Or NotYes
