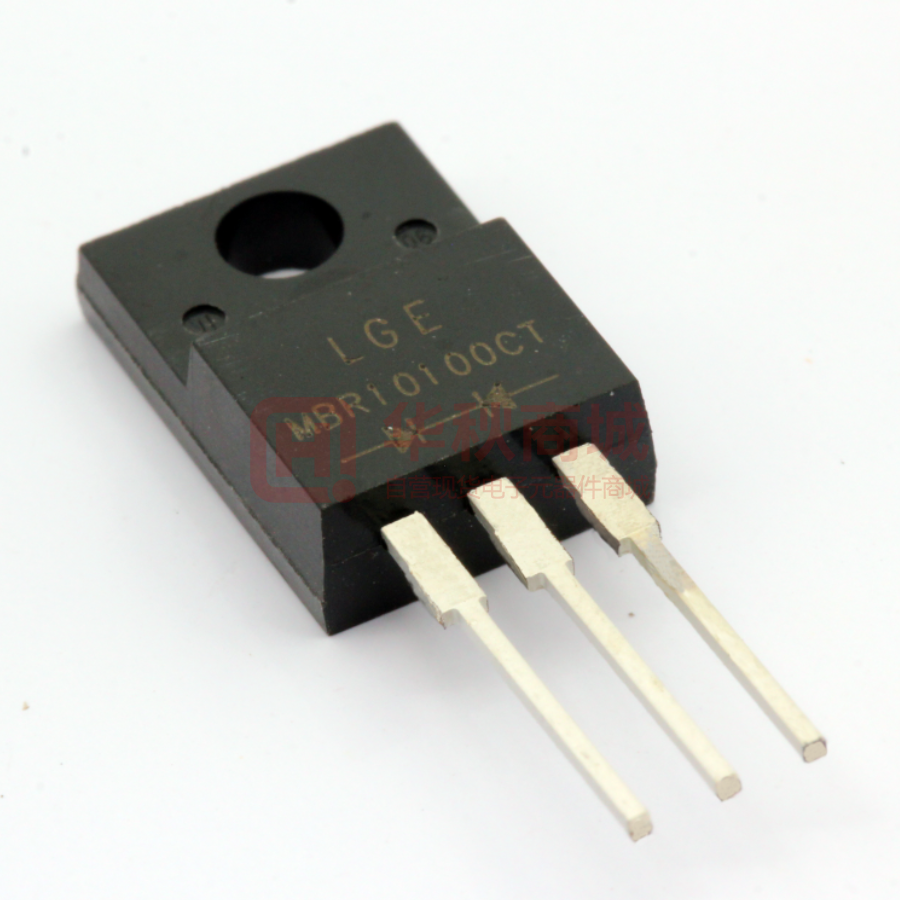

Images are for reference only


  • Mfr Part #MBR10100CTP
  • ManufacturerLGE
  • HQ Part #DS0139797
  • PackageITO-220AB
  • Lead Time Ship immediately
  • DescriptionSchottky Diode VR=100V IF=10A IR=100μA ITO220AB

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Reverse Peak Voltage (Maximum)100V
Operating Temperature-55~+150℃(TJ)
Diode TypeSchottky
Reverse Withstand Voltage Vr100V
Average Rectified Current10A
Reverse Recovery Time (trr)-
Package / CaseITO-220AB
Package / CaseITO220AB
Installation TypeDIP
Forward Voltage VF Max850mV
Vf(Max Instantaneous Forward Voltage)850mV
Ifsm - Peak Forward Surge Current125A
Partlife CycleActive
Storage Temperature-55~+150℃
Lead Quantity3Pin
L x W/Size10.20 x 4.50mm
Country of OriginChina
Original ManufacturerLuguang Electronic Technology Co., Ltd.
Forward Current10A
Part StatusActive
Lead Free Or NotYes
