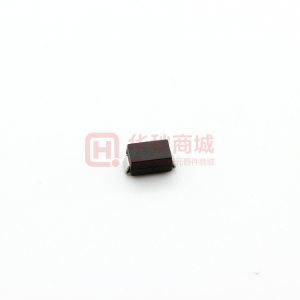

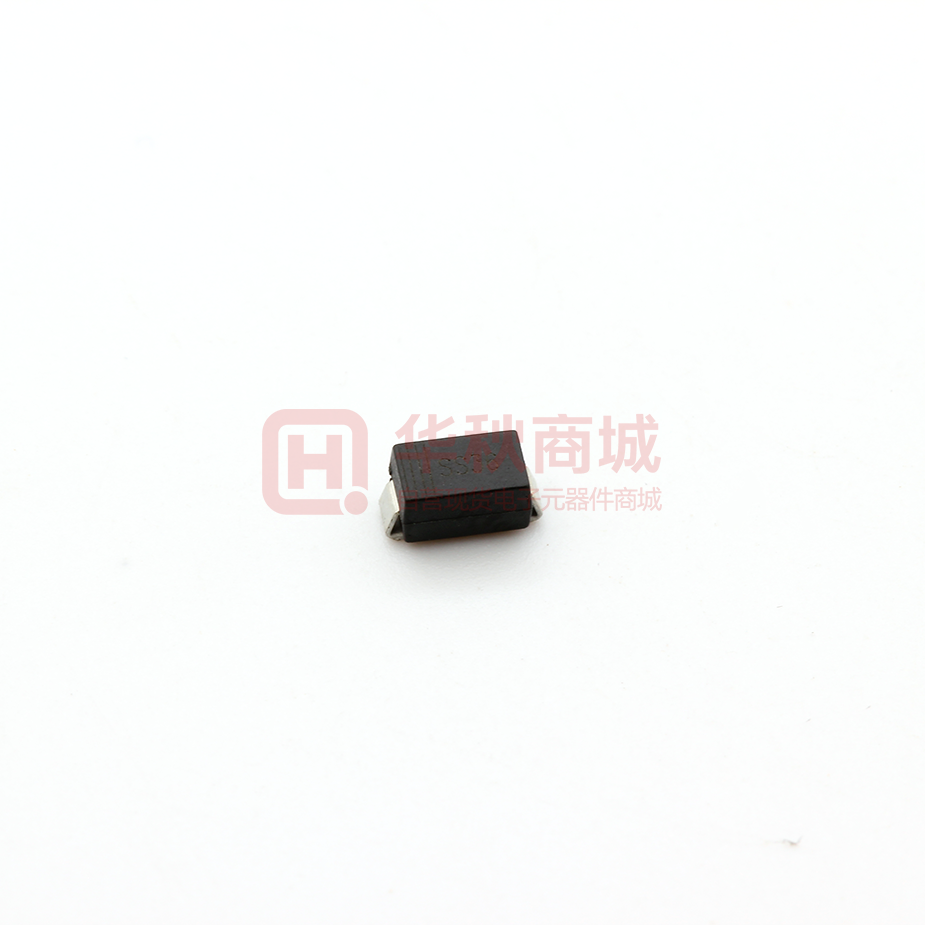

Images are for reference only

SS36

  • Mfr Part #SS36
  • ManufacturerHottech
  • HQ Part #DS0140187
  • PackageSMA(DO-214AC)
  • Lead Time Ship immediately
  • DescriptionSchottky Diode Single VR=60V IF=3A IR=500μA SMA

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Reverse Peak Voltage (Maximum)60V
Diode ConfigurationSingle
Diode TypeSchottky
Reverse Withstand Voltage Vr60V
Average Rectified Current3A
Forward Voltage Drop Vf750mV
Reverse Recovery Time (trr)-
Reverse Leakage Current Ir500µA
Package / CaseSMA(DO-214AC)
Package / CaseSMA
Installation TypeSMT
Junction Capacitance450pF
Forward Voltage VF Max700mV
Ifsm - Peak Forward Surge Current80A
Partlife CycleActive
Lead Quantity2pin
Height2.55mm
L x W/Size5.30 x 2.80mm
Country of OriginChina
Original ManufacturerGuangdong Hottech Co. Ltd.
BrandHottech
ApplicationConsumer
Forward Current3A
Part StatusActive
Lead Free Or NotYes
