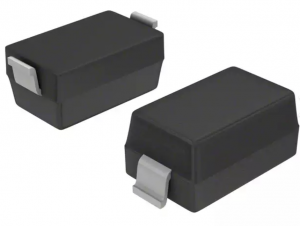

Images are for reference only

B5817W

  • Mfr Part #B5817W
  • ManufacturerHottech
  • HQ Part #DS0140151
  • PackageSOD123
  • Lead Time Ship immediately
  • DescriptionSchottky Diode Single VR=20V IF=1A IR=1mA CT=120pF SOD123

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Maximum Dissipated Power500mW
Reverse Peak Voltage (Maximum)20V
Diode ConfigurationSingle
Operating Temperature+125℃(TJ)
Diode TypeSchottky
Reverse Withstand Voltage Vr20V
Average Rectified Current1A
Forward Voltage Drop Vf450mV
Reverse Recovery Time (trr)-
Package / CaseSOD123
Installation TypeSMT
Vf(Max Instantaneous Forward Voltage)750mV
Ifsm - Peak Forward Surge Current9A
Breakdown Voltage20V
Partlife CycleActive
Storage Temperature-55~+150℃
Lead Quantity2pin
Height1.25mm
L x W/Size2.70 x 1.60mm
Country of OriginChina
Original ManufacturerGuangdong Hottech Co. Ltd.
BrandHottech
Total Capacitance C120pF
Part StatusActive
Lead Free Or NotYes
