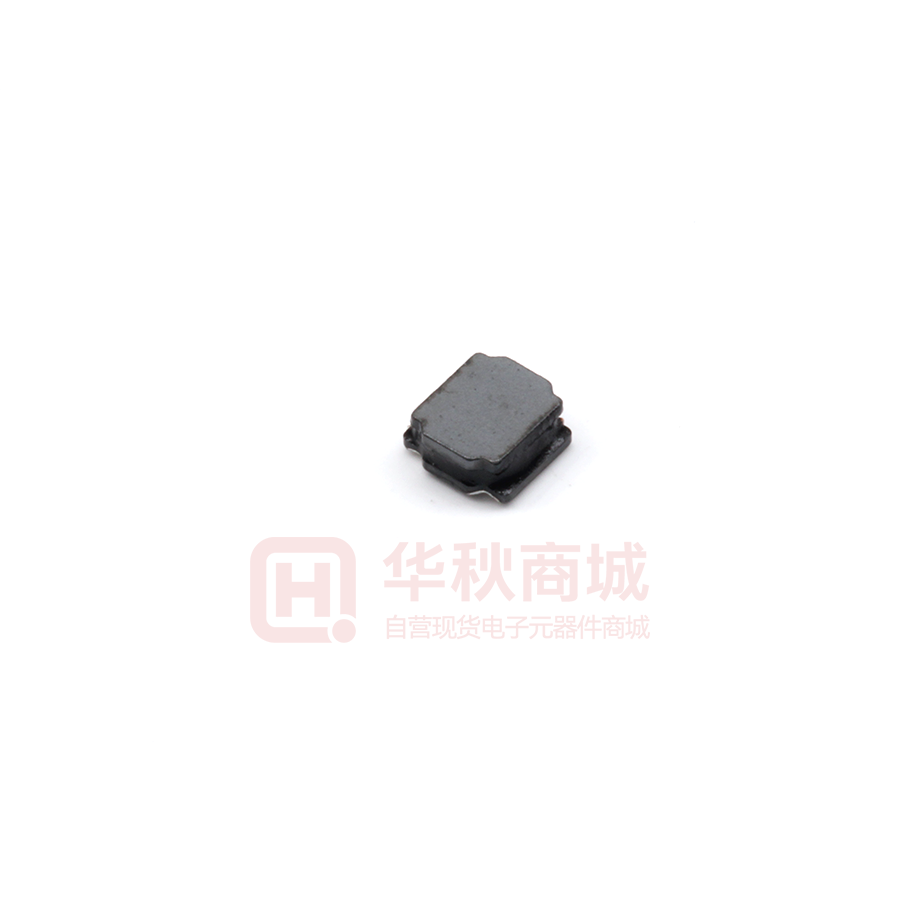

Images are for reference only

Power Inductors Taiyo Yuden NR3015T4R7M

  • Mfr Part #NR3015T4R7M
  • ManufacturerTaiyo Yuden
  • HQ Part #IN0020565
  • PackageIND_3X3MM_SM
  • Lead Time Ship immediately
  • DescriptionPower Inductors 4.7µH ±20% IND_3X3MM_SM 1.50mm 3.00 x 3.00mm 120mΩ 1.02A 40MHz

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Dc Resistance (Dcr)120mΩ
Operating Temperature-25~+120℃
Self Resonance Frequency40MHz
Saturation Current1.04A
Rated Current1.02A
Height1.50mm
Size3.00 x 3.00mm
Package / CaseIND_3X3MM_SM
Installation TypeSMT
Accuracy±20%
Sensibility4.7µH
Partlife CycleActive
MaterialFerrite
Storage Temperature-40~+85℃
Lead Quantity2Pin
Country of OriginJapan
CertificationRoHS,HF(halogen free)
Original ManufacturerTaiyo Yuden Co., Ltd.
BrandTaiyo Yuden
SeriesNR
Lead Free Or NotYes
0Consumer, Industrial,
Grade-
Shield-
