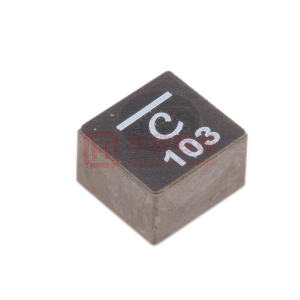

Images are for reference only
XAL1510-103MED
- Mfr Part #XAL1510-103MED
- ManufacturerCoilcraft
- HQ Part #IN0028781
- Package1510
- Lead Time Ship immediately
DescriptionPower Inductors 10µH ±20% 1510 10.00mm 16.20 x 15.20mm 6.8mΩ 16A 10.1MHz
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| DC Resistance (DCR) | 6.8mΩ | |
| Operating Temperature | -40℃~+125℃ | |
| Self Resonance Frequency | 10.1MHz | |
| Saturation Current | 26.3A | |
| Rated Current | 16A | |
| Height | 10.00mm | |
| Size | 16.20 x 15.20mm | |
| Package / Case | 1510 | |
| Installation Type | SMT | |
| Accuracy | ±20% | |
| Sensibility | 10μH | |
| Partlife Cycle | Active | |
| Storage Temperature | -55~+165℃ | |
| Lead Quantity | 2Pin | |
| Country of Origin | America | |
| Original Manufacturer | Coilcraft, Inc. | |
| Series | XAL1510 | |
| Lead Free Or Not | Yes | |
| Test Frequency | 1MHz | |
| Grade | AEC-Q200 | |
| Shield | Shielded |
