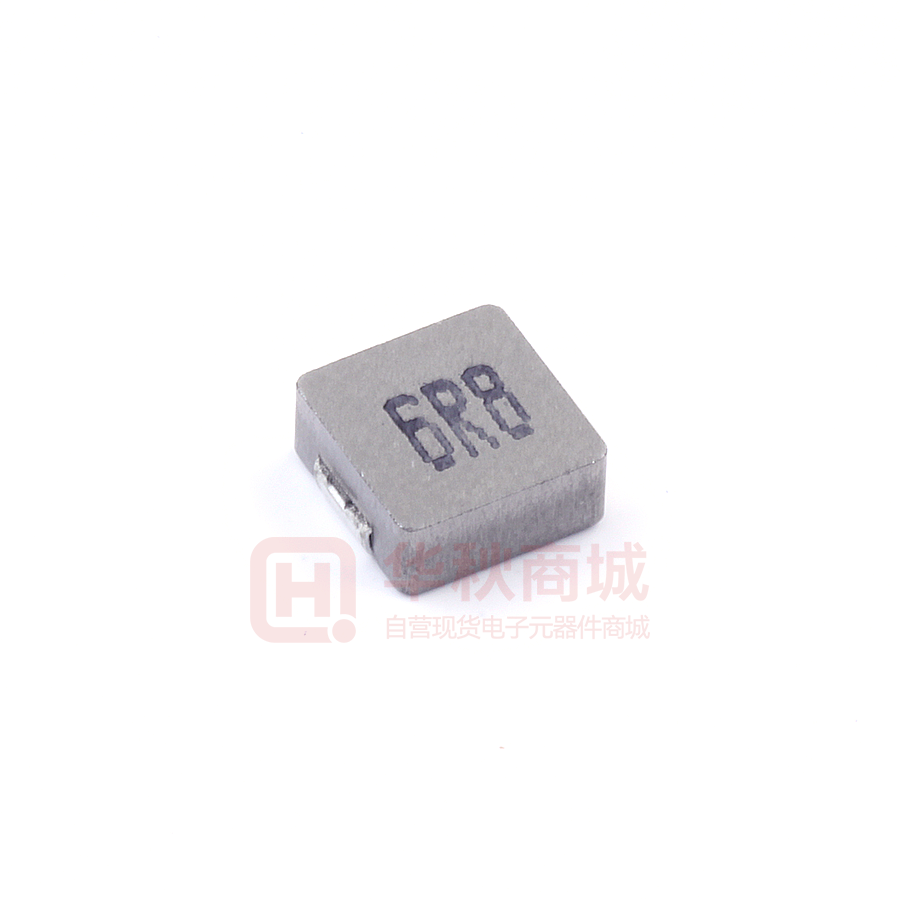

Images are for reference only
FXL0630-6R8-M
- Mfr Part #FXL0630-6R8-M
- Manufacturercjiang
- HQ Part #IN0026867
- PackageSMD,7x6.6mm
- Lead Time Ship immediately
DescriptionSMD，7*6.6*2.8mm (0603) inductance value: 6.8µH accuracy: ±20% rated current: 5A saturation current: 6A DC resistance (DCR): 42.5mΩ alloy inductor/integrated inductor/large current
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| DC Resistance (DCR) | 42.5mΩ | |
| Operating Temperature | -55℃~+125℃ | |
| Self Resonance Frequency | - | |
| Saturation Current | 6A | |
| Rated Current | 5A | |
| Height | 2.80mm | |
| Size | 7.00 x 6.60mm | |
| Package / Case | SMD,7x6.6mm | |
| Installation Type | SMT | |
| Accuracy | ±20% | |
| Sensibility | 6.8μH | |
| Packaging Technology | Wirewound | |
| Partlife Cycle | Active | |
| Material | Alloy Sponge Powder | |
| Storage Temperature | -10~+40℃ | |
| Lead Quantity | 2Pin | |
| Country of Origin | China | |
| Certification | RoHS | |
| Original Manufacturer | Changjiang Microelectronics Technology Co., Ltd. | |
| Series | FXL | |
| Lead Free Or Not | Yes | |
| 0 | Consumer,Industrial | |
| Test Frequency | 100KHz | |
| Grade | Industrial |
