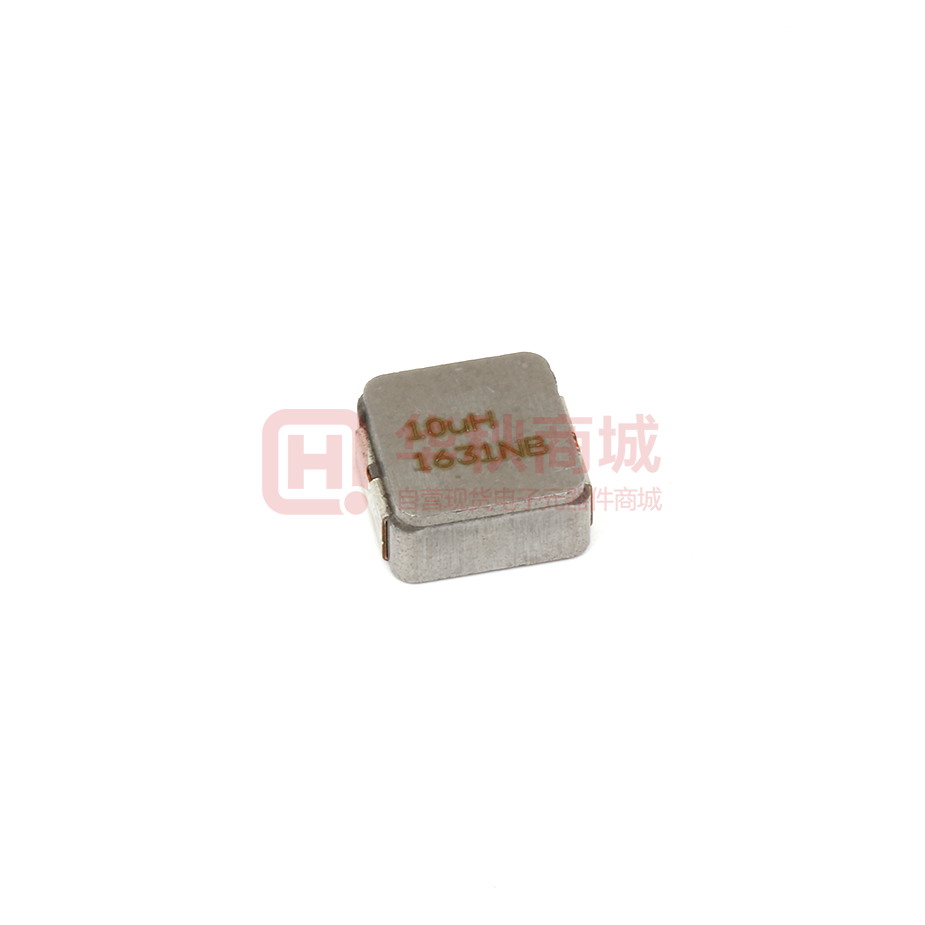

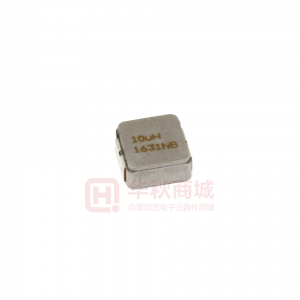

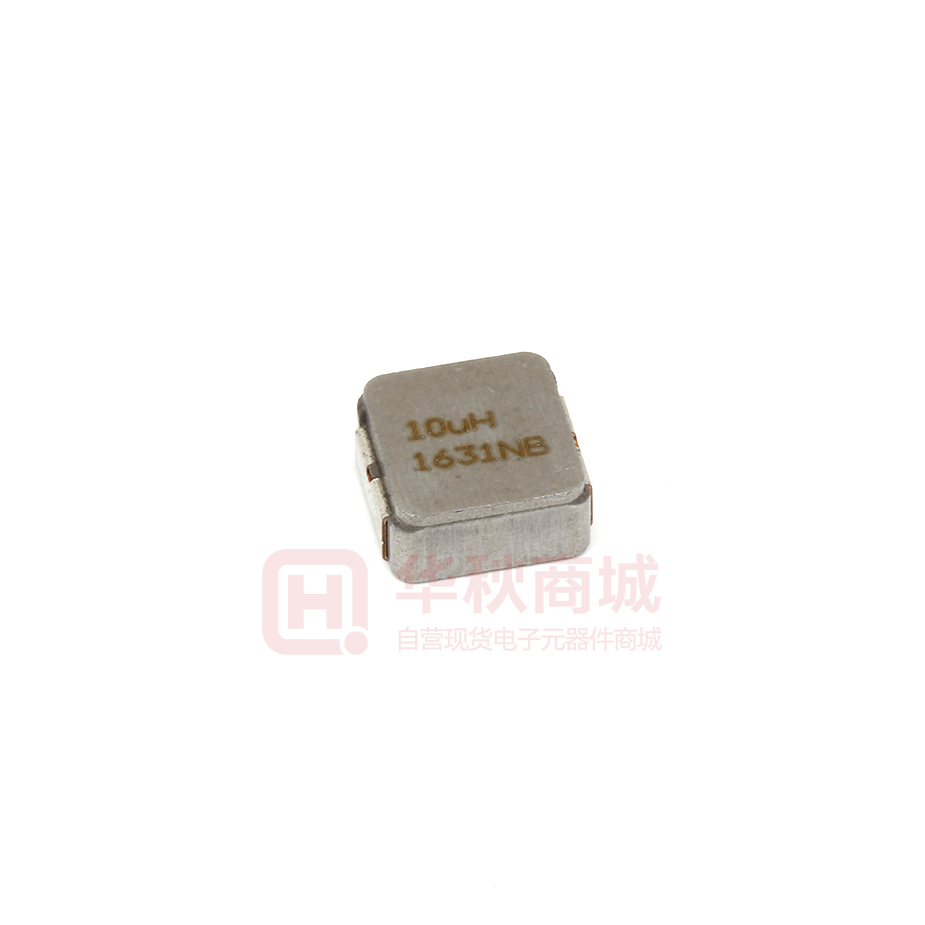

Images are for reference only

IHLP3232DZER100M01

  • Mfr Part #IHLP3232DZER100M01
  • ManufacturerVishay
  • HQ Part #IN0023433
  • PackageIND_8.64X8.18MM_SM
  • Lead Time Ship immediately
  • DescriptionFixed Inductors 8.64 x 8.18mm 5.2A 10µH ±20% 56mΩ 15MHz IND_8.64X8.18MM_SM 4.00mm

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
DC Resistance (DCR)56mΩ
Operating Temperature-55~+125℃
Self Resonance Frequency15MHz
Saturation Current9A
Rated Current5.2A
Height4.00mm
Size8.64 x 8.18mm
Package / CaseIND_8.64X8.18MM_SM
Installation TypeSMT
Accuracy±20%
Lead Quantity2Pin
Original ManufacturerVishay Intertechnology, Inc.
BrandVishay
SeriesIHLP-3232DZ-01
Lead Free Or NotYes
Grade-
Shield-
Type-
