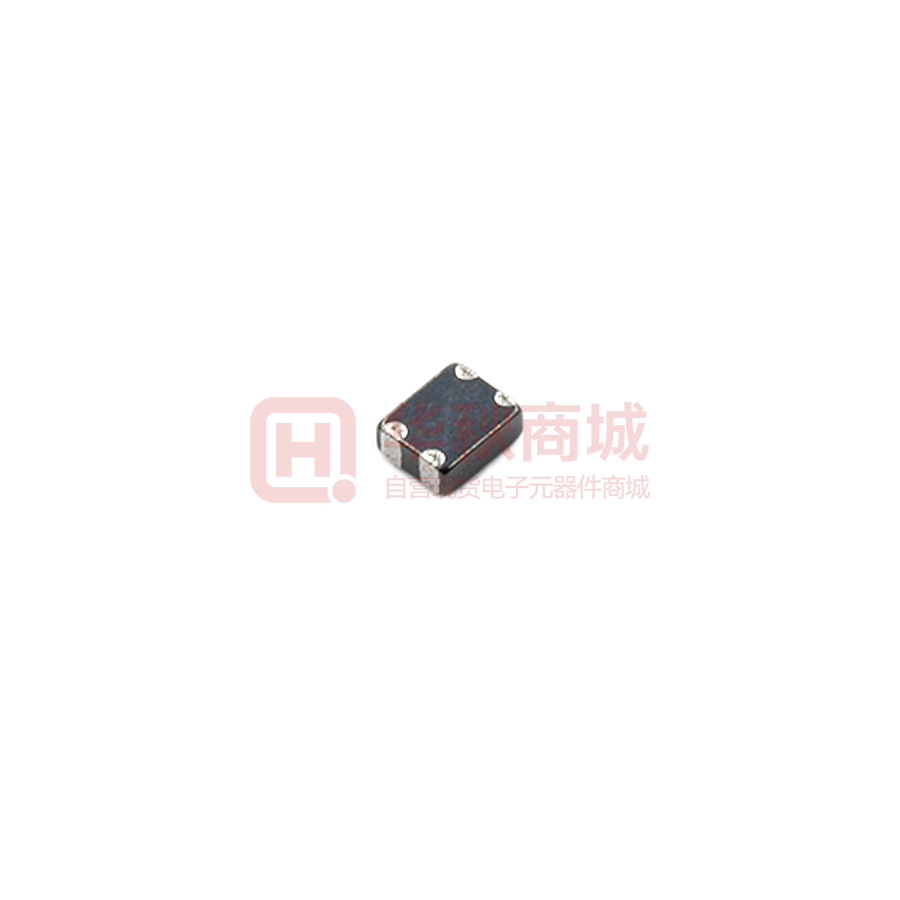

Images are for reference only

MCZ1210DH500L2TA0G

  • Mfr Part #MCZ1210DH500L2TA0G
  • ManufacturerTDK
  • HQ Part #WF0004327
  • PackageCHOKE-4P_1.25X1MM_SM
  • Lead Time Ship immediately
  • DescriptionCommon Mode Inductance 50Ω 0.50mm 1.25 x 1.00mm 0504 2.5Ω 50Ω@100MHz ±25%

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
DC Resistance (DCR)2.5Ω
Impedance At Different Frequencies50Ω@100MHz
Number Of Lines2
Operating Temperature-40~+85℃
Rated Current100mA
Height0.50mm
Size1.25 x 1.00mm
Package / Case0504
Installation TypeSMT
Accuracy±25%
BrandTDK
SeriesMCZ
Lead Free Or NotYes
Common Impedance 50Ω
GradeIndustrial
Terms of Service
ShippingDelivery Period For stock parts, orders placed on HQonline from 8:00-16:00 will be dispatched on the same day
Once shipped, the transit time depends on the logistics provider you choose:
DHL Express, 3-5 days
FedEx International, 3-5 days
China Post Airmail, 15-45 days
Shipping RateShipping rate for your order can be found in the shopping cart.
Shipping OptionWe provide DHL, FedEx, and China Post Airmail shipping.
Shipping TrackingWe will notify you by email with a tracking number once the order is shipped. You can also find the tracking number in the order history.
Returning/WarrantyReturning HQonline only accepts return requests due to quality issues. Return requests should be submitted within 30 days of delivery of the goods, please contact customer service for a return authorization.
Parts should be unused and in original packaging.
The customer has to take charge of the shipping.
Warranty All HQonline purchases come with a 30-day money-back return policy, plus a 90-day HQonline warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by the customer to follow instructions, product modification, negligent or improper operation.
OrderingHow to Buy HQonline accepts online orders.
Add to cart > Check out > Submit order > Complete payment >Delivery
Payment PayPal, Payoneer, Credit Card includes Visa, Master, American Express, JCB, Discover.
Western Union, Bank Transfer, Payoneer, AliExpress.
17,267 In Stock
Qty
Minimum1 Mutiple1
Unit Price$ 0.0557
Ext Price$ 0
Add to Cart
Buy Now
Pricing (USD)
QtyUnit PriceExt Price
1+$0.03988 $0.03988
100+$0.03722 $3.72200
300+$0.03456 $10.36800
500+$0.03190 $15.95000
2000+$0.03057 $61.14000
5000+$0.02978 $148.90000
