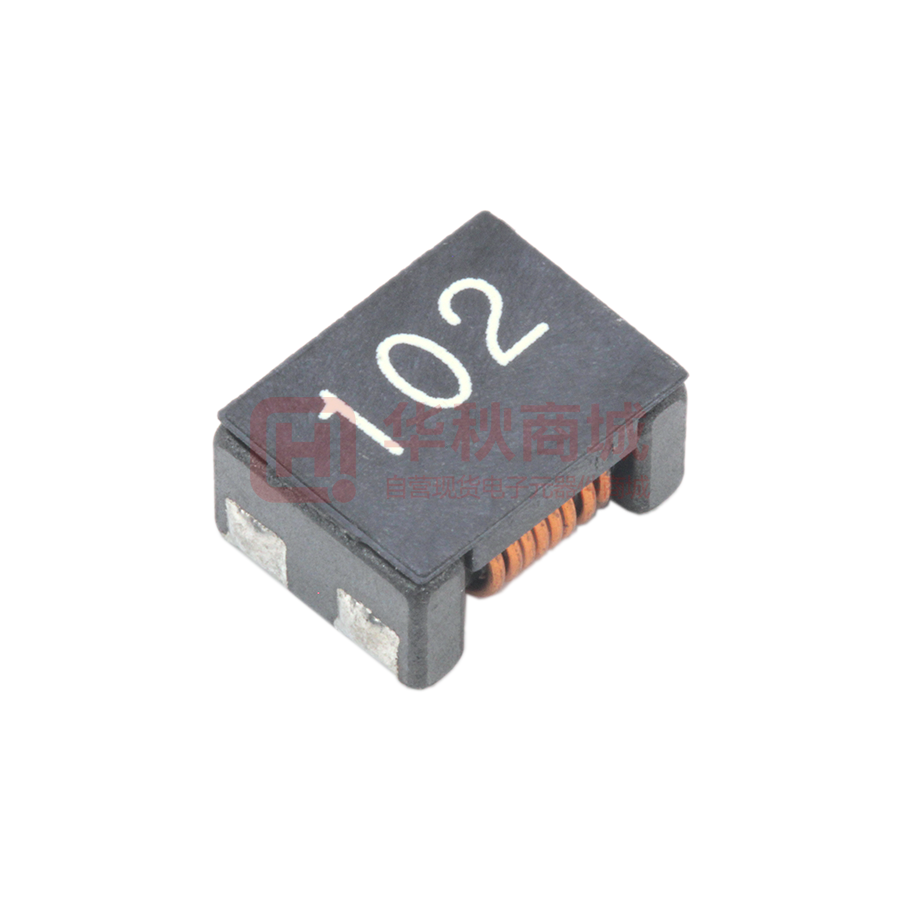

Images are for reference only
SMCM9070-102T
- Mfr Part #SMCM9070-102T
- ManufacturerSXN
- HQ Part #IN0028773
- PackageCHOKE_9.5X7MM_SM
- Lead Time Ship immediately
DescriptionCommon Mode Chokes 4.80mm 1KΩ 9.50 x 7.00mm 13mΩ CHOKE_9.5X7MM_SM 4A
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| DC Resistance (DCR) | 13mΩ | |
| Number Of Lines | 2 | |
| Operating Temperature | -40~+125℃ | |
| Rated Current | 4A | |
| Height | 4.80mm | |
| Size | 9.50 x 7.00mm | |
| Package / Case | CHOKE_9.5X7MM_SM | |
| Installation Type | SMT | |
| Partlife Cycle | Active | |
| Storage Temperature | +5~+40℃ | |
| Country of Origin | China | |
| Certification | RoHS,HF(halogen free) | |
| Original Manufacturer | ShenZhen ShunXiangNuo Electronics Co.,Ltd. | |
| Brand | SXN | |
| Series | SMCM | |
| Lead Free Or Not | Yes | |
| Common Impedance | 1KΩ | |
| Test Frequency | 100MHz |
