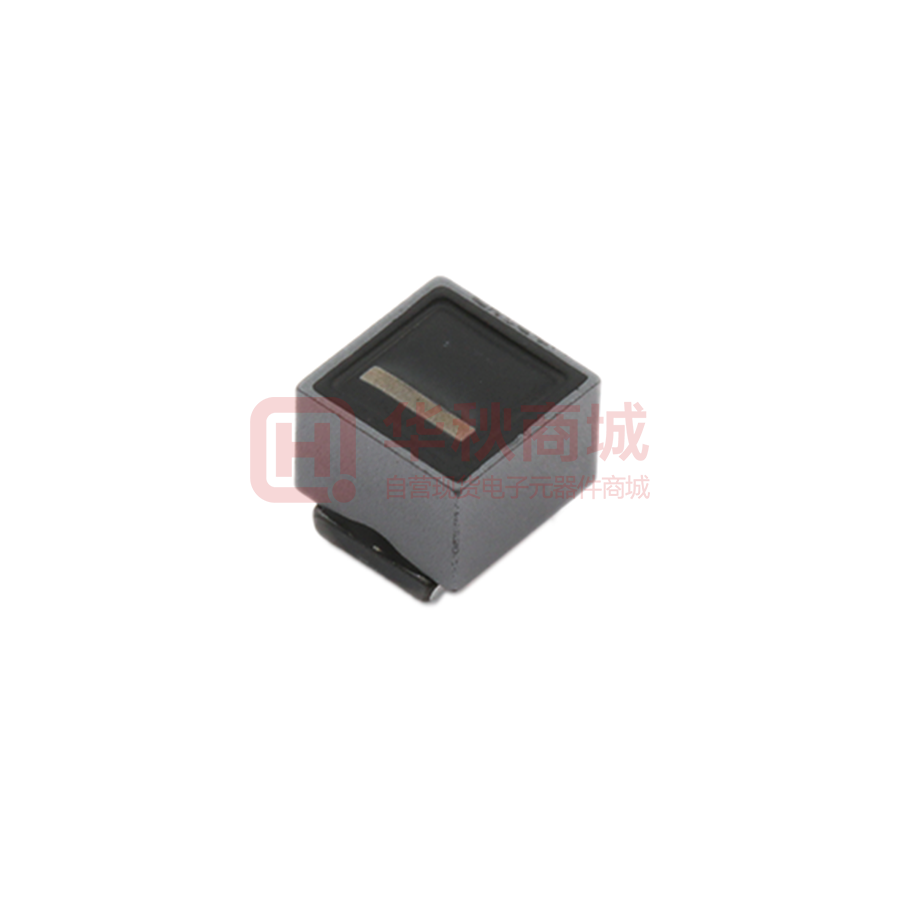

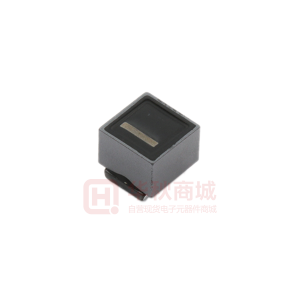

Images are for reference only

DLW5BTM102TQ2L

  • Mfr Part #DLW5BTM102TQ2L
  • ManufacturerMurata
  • HQ Part #WF0005703
  • PackageCHOKE_5X5MM_SM
  • Lead Time Ship immediately
  • DescriptionCommon Mode Chokes 5.00 x 5.00mm CHOKE_5X5MM_SM 2.5A 1000µH 1KΩ ±25% 34mΩ 2.35mm

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
DC Resistance (DCR)34mΩ
Impedance At Different Frequencies1KΩ@100MHz
Number Of Lines2
Operating Temperature-40~+105℃
Rated Current2.5A
Height2.35mm
Size5.00 x 5.00mm
Package / CaseCHOKE_5X5MM_SM
Installation TypeSMT
Accuracy±25%
Sensibility1mH
Packaging TechnologyWirewound
Partlife CycleActive
Storage Temperature-40~+105℃
Country of OriginJapan
CertificationRoHS
Original ManufacturerMurata Manufacturing Co., Ltd.
BrandMurata
SeriesDLW5BTM_TQ
Lead Free Or NotYes
Common Impedance 1KΩ
0Automotive,Consumer
Test Frequency10MHz
GradeIndustrial
