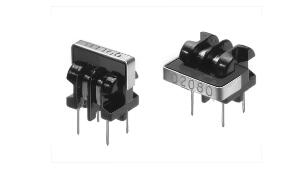

Images are for reference only

Common Mode Inductance KEMET SU9H-R03090

  • Mfr Part #SU9H-R03090
  • ManufacturerKEMET
  • HQ Part #WF0004954
  • PackageIND_17X15.5MM_TM
  • Lead Time Ship immediately
  • DescriptionCommon Mode Chokes IND_17X15.5MM_TM 17.00 x 15.50mm - 12.5mm 300mA - 9mH 3Ω

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Dc Resistance (Dcr)
Maximum Height0.492"(12.50mm)
Rated Current (Maximum)300mA
Impedance At Different Frequencies-
Number Of Lines2
Filter Type-
Operating Temperature-25~+120℃
Rated Current300mA
Size17.00 x 15.50mm
Package / CaseIND_17X15.5MM_TM
Installation TypeDIP
PackingBox Packing
Insulation Resistance100MΩ
Partlife CycleActive
Storage Temperature-25~+40℃
Lead Quantity4Pin
Marking TypeR
Country of OriginAmerica
Original ManufacturerKemet Corporation
Rated Voltage Ac250V
Rated Voltage Dc-
Inductance @ Frequency9mH@1kHz
Lead Free Or NotYes
Common Impedance -
Test Frequency1kHz
Core Material Ferrite
