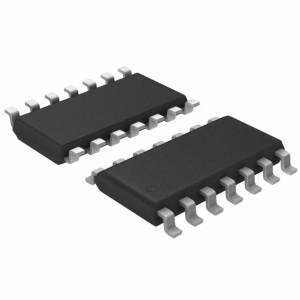

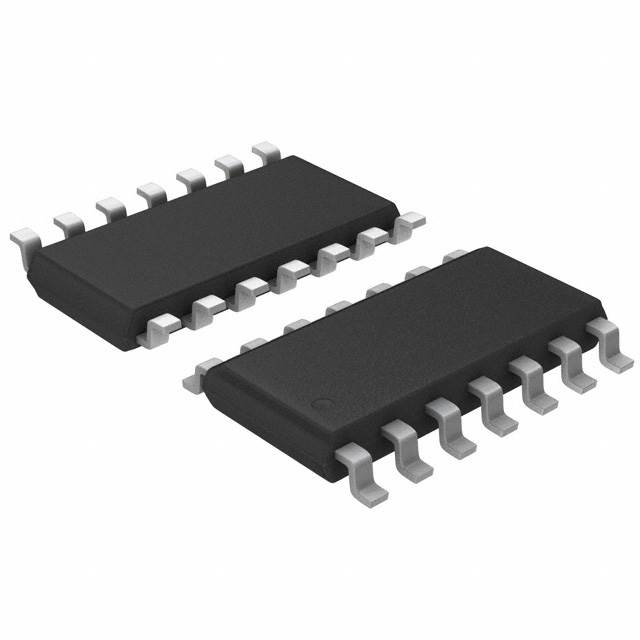

Images are for reference only


  • Mfr Part #74HC4066D(BJ)
  • ManufacturerToshiba
  • HQ Part #IC0445138
  • PackageSOIC-14_8.65X3.9MM
  • Lead Time Ship immediately
  • DescriptionSOIC-14 Analog Switches / Multiplexers ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Number Of Circuits4
Multiplexer/Demultiplexer Circuit1:1
Supply Voltage, Single (V+)2V~12V
-3db Bandwidth200MHz
Package / CaseSOIC14_150MIL
On Resistance80Ω
On Resistance80Ω
Leakage Current100nA
L x W/Size8.65 x 3.90mm
Partlife CycleActive
Mounting TypeSMT
Country of OriginJapan
Original ManufacturerToshiba Corporation
Crosstalk -60dB@1MHz
Channel Capacitance (Cs (Off), Cd (Off))3pF
Switching Time (Ton, Tof) (Maximum)12,12ns
Part StatusActive
Number Of Channels4
Operating Temperature-40°C~85°C(TA)
Lead Free Or NotYes
