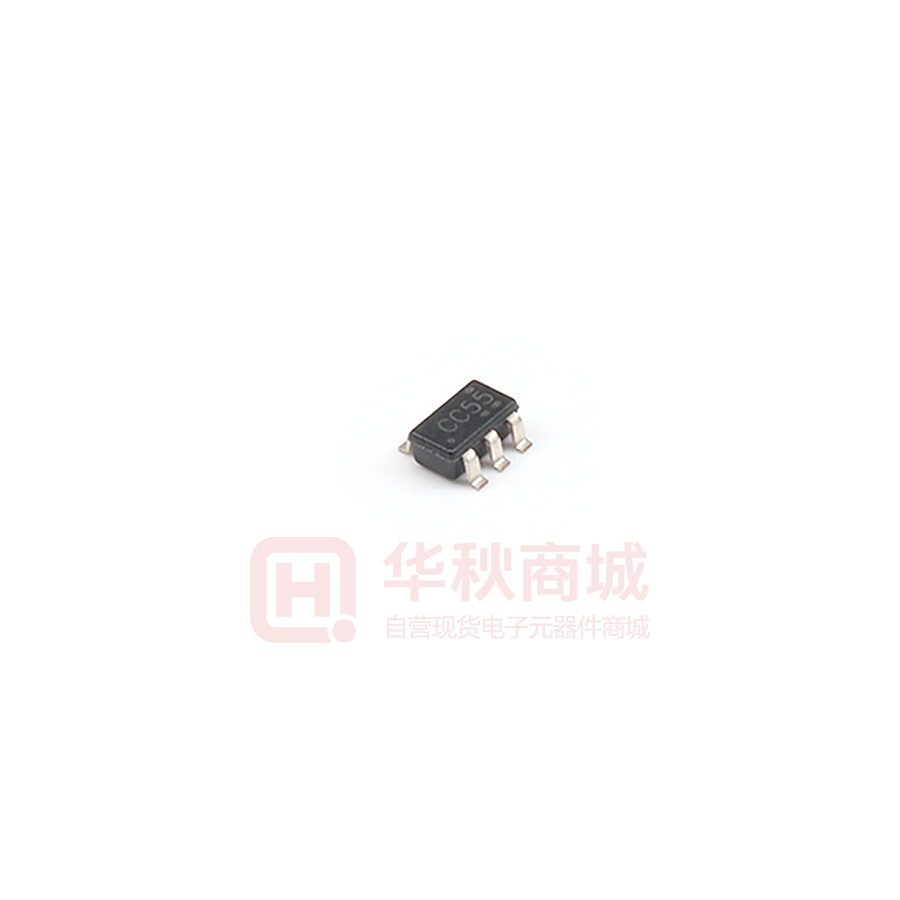

SN74LVC1G3157DBVR

  • Mfr Part #SN74LVC1G3157DBVR
  • ManufacturerTI
  • HQ Part #IC0086322
  • PackageSOT23-6
  • Lead Time Ship immediately
  • DescriptionSOT-23-6 Analog Switches / Multiplexers ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Channel To Channel Matching( Δ Ron)100mΩ
Number Of Circuits1
Moisture Sensitivity Level (MSL)-
Multiplexer/Demultiplexer Circuit2:1
Supply Voltage, Single (V+)1.65V~5.5V
Supply Voltage, Dual (V ±)-
-3db Bandwidth340MHz
Package / CaseSOT-23-6
On Resistance15Ω
On Resistance-
Leakage Current1µA
Lead Quantity6Pins
Height1.10mm
L x W/Size3.05 x 1.75mm
Partlife CycleActive
Mounting TypeSMT
Country of OriginAmerica
Original ManufacturerTexas Instruments Incorporated
Crosstalk -54dB@10MHz
Channel Capacitance (Cs (Off), Cd (Off))5.2pF
Switching Time (Ton, Tof) (Maximum)5.7ns,3.8ns
Series-
Part StatusActive
Switch CircuitSPDT
Number Of Channels1
Operating Temperature-40°C~85°C(TA)
Lead Free Or NotYes
