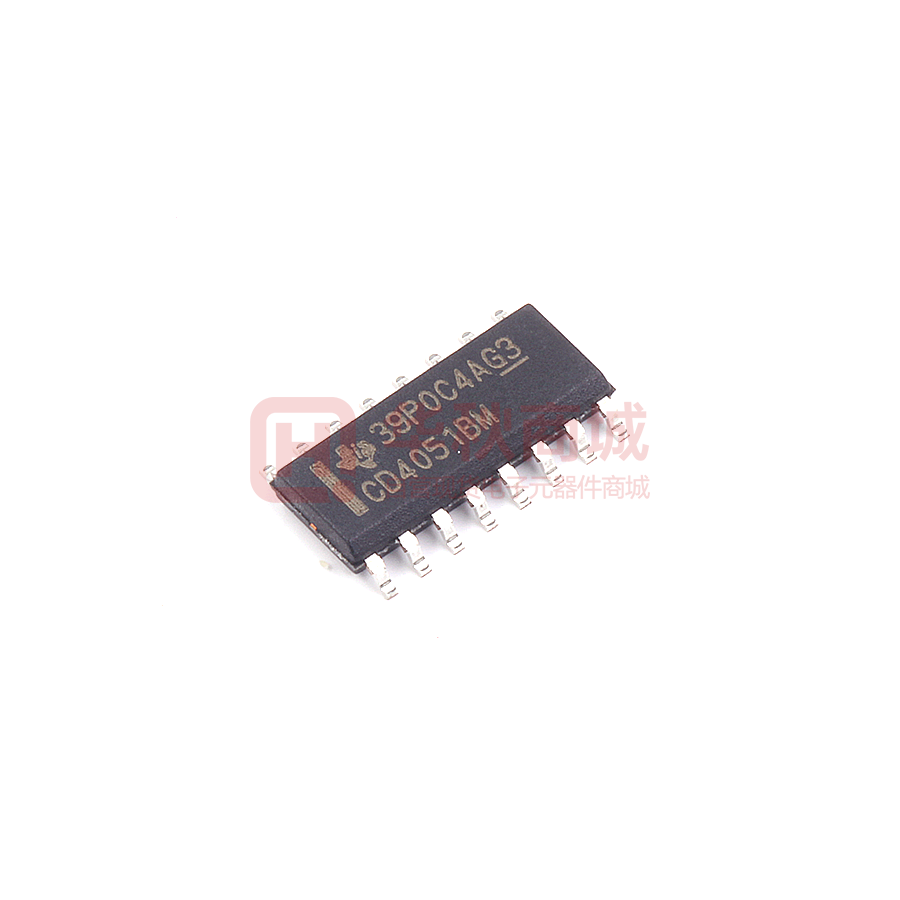

Images are for reference only

CD4051BM96

  • Mfr Part #CD4051BM96
  • ManufacturerTI
  • HQ Part #IC0086326
  • PackageSOIC16_150MIL
  • Lead Time Ship immediately
  • DescriptionSOIC-16-150mil Analog Switches / Multiplexers ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Channel To Channel Matching( Δ Ron)
Number Of Circuits1
Moisture Sensitivity Level (MSL)-
Multiplexer/Demultiplexer Circuit8:1
Supply Voltage, Single (V+)3V~20V
Supply Voltage, Dual (V ±)±2.5V~9V
-3db Bandwidth20MHz
Package / CaseSOIC16_150MIL
On Resistance-
On Resistance240Ω
Leakage Current100nA
Lead Quantity16Pins
Height1.75mm
L x W/Size10.00 x 4.00mm
Mounting TypeSMT
Original ManufacturerTexas Instruments Incorporated
Channel Capacitance (Cs (Off), Cd (Off))0.2pF,30pF
Series-
Part StatusActive
Switch Circuit-
Number Of Channels8
Operating Temperature-55°C~125°C(TA)
Lead Free Or NotYes
