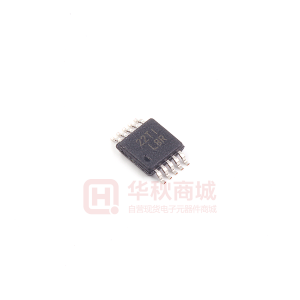

TS3A24159DGSR

  • Mfr Part #TS3A24159DGSR
  • ManufacturerTI
  • HQ Part #IC0086370
  • PackageVSSOP10_3X3MM
  • Lead Time Ship immediately
  • DescriptionMSOP-10 Analog Switches / Multiplexers ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Channel To Channel Matching( Δ Ron)10mΩ
Number Of Circuits2
Moisture Sensitivity Level (MSL)-
Multiplexer/Demultiplexer Circuit2:1
Supply Voltage, Single (V+)1.65V~3.6V
Supply Voltage, Dual (V ±)-
-3db Bandwidth23MHz
Package / CaseVSSOP10_3X3MM
On Resistance300mΩ
On Resistance-
Leakage Current10nA
Lead Quantity8Pins
Height1.10mm
L x W/Size3.00 x 3.00mm
Partlife CycleActive
Mounting TypeSMT
Country of OriginAmerica
Crosstalk -96dB@1MHz
Channel Capacitance (Cs (Off), Cd (Off))90pF
Switching Time (Ton, Tof) (Maximum)35ns,25ns
Series-
Part StatusActive
Switch CircuitSPDT
Number Of Channels2
Operating Temperature-40°C~85°C(TA)
