Restocking

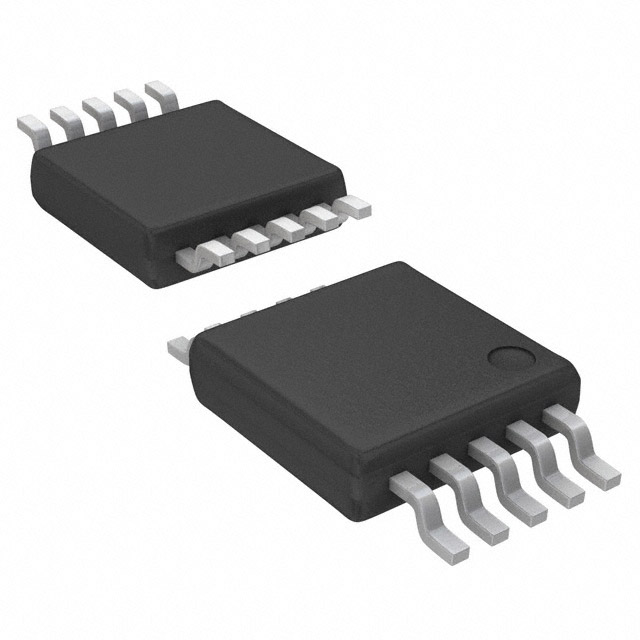

Images are for reference only
Analog Switch Chips Maxim MAX4634EUB+T
- Mfr Part #MAX4634EUB+T
- ManufacturerMaxim
- HQ Part #IC0086456
- PackageMSOP10_3X3MM
- Lead Time Ship immediately
DescriptionMSOP-10 Analog Switches / Multiplexers ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Leakage Current (Is (Off)) (Maximum) | 100pA | |
| Leakage Current (Is (Off)) (Maximum) | 100pA | |
| Channel To Channel Matching（ Δ Ron） | 100mΩ | |
| Number Of Circuits | 1 | |
| Moisture Sensitivity Level (Msl) | - | |
| Packing | Tape/Reel | |
| Multiplexer/Demultiplexer Circuit | 4:1 | |
| On Resistance (Maximum) | - | |
| On Resistance (Maximum) | 4Ω | |
| Supply Voltage, Single (V+) | 1.8V~5.5V | |
| Supply Voltage, Dual (V ±) | - | |
| -3db Bandwidth | - | |
| Package / Case | MSOP10_3X3MM | |
| On Resistance | 4Ω | |
| Leakage Current | 100pA | |
| Height | 1.10mm | |
| L x W/Size | 3.00 x 3.00mm | |
| Partlife Cycle | Active | |
| Mounting Type | SMT | |
| MPQ | 2500pcs | |
| Country of Origin | America | |
| Original Manufacturer | Maxim Integrated Inc. | |
| Crosstalk | -78dB@1MHz | |
| Channel Capacitance (Cs (Off), Cd (Off)) | 13pF，52pF | |
| Charge Injection | 2pC | |
| Switching Time (Ton, Tof) (Maximum) | 18ns，11ns | |
| Manufacturer'S Standard Lead Time | - | |
| Series | - | |
| Part Status | Active | |
| Switch Circuit | SP4T | |
| Number Of Channels | 4 | |
| Operating Temperature | -40°C~85°C（TA） | |
| Lead Free Or Not | Yes |
