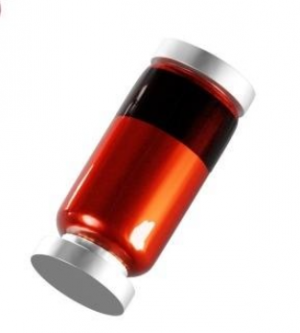

Images are for reference only

Zener / Zener Diodes ST ZMM18

  • Mfr Part #ZMM18
  • ManufacturerST
  • HQ Part #DS0137348
  • PackageLL34
  • Lead Time Ship immediately
  • DescriptionStable voltage (nominal value) : 18V stable voltage (range) : 16.8V to 19.1V power: 500mW reverse current (Ir) : 100nA@13V

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Reverse Current Izt-
Voltage Stabilizing Value Vz18V
Dynamic Resistance (Maximum)50 Ohms
Maximum Dissipated Power500mW
PackingBulk packing
Operating Temperature-55℃~175℃
Moisture Sensitivity Level (Msl)-
Forward Voltage Drop Vf1V
Reverse Leakage Current Ir100nA
Package / CaseLL34
Installation TypeSMT
Forward Voltage VF Max1V
Maximum Voltage Regulator19.10V
Minimum Voltage Regulator16.80V
Standard Voltage Regulator18V
Partlife CycleActive
Lead Quantity2pin
L x W/SizeΦ1.45 x 3.50mm
Country of OriginSwitzerland
Original ManufacturerSTMicroelectronics
Part StatusActive
