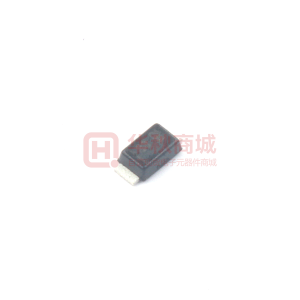

Images are for reference only
PD3S140-7
- Mfr Part #PD3S140-7
- ManufacturerDIODES
- HQ Part #DS0005501
- PackagePowerDI323
- Lead Time Ship immediately
DescriptionSchottky Diodes & Rectifiers 1.0A 40V
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Reverse Peak Voltage (Maximum) | 40V | |
| Diode Configuration | Single | |
| Operating Temperature | -65℃~150℃ | |
| Moisture Sensitivity Level (MSL) | - | |
| Diode Type | - | |
| Reverse Withstand Voltage Vr | 40V | |
| Average Rectified Current | 1A | |
| Reverse Recovery Time (trr) | - | |
| Reverse Leakage Current Ir | 50µA | |
| Package / Case | PowerDI323 | |
| Installation Type | SMT | |
| Forward Voltage VF Max | 550mV | |
| Ifsm - Peak Forward Surge Current | 22A | |
| Breakdown Voltage | 40V | |
| Storage Temperature | -65~+150℃ | |
| Lead Quantity | 2pin | |
| Height | 0.70mm | |
| L x W/Size | 1.95 x 1.30mm | |
| Certification | RoHS, AEC-100, AEC-Q101, AEC-Q200 | |
| Country of Origin | America | |
| Original Manufacturer | Diodes Incorporated | |
| Brand | DIODES | |
| Application | - | |
| Total Capacitance C | 32pF | |
| Series | - | |
| Part Status | Active | |
| Lead Free Or Not | No |
