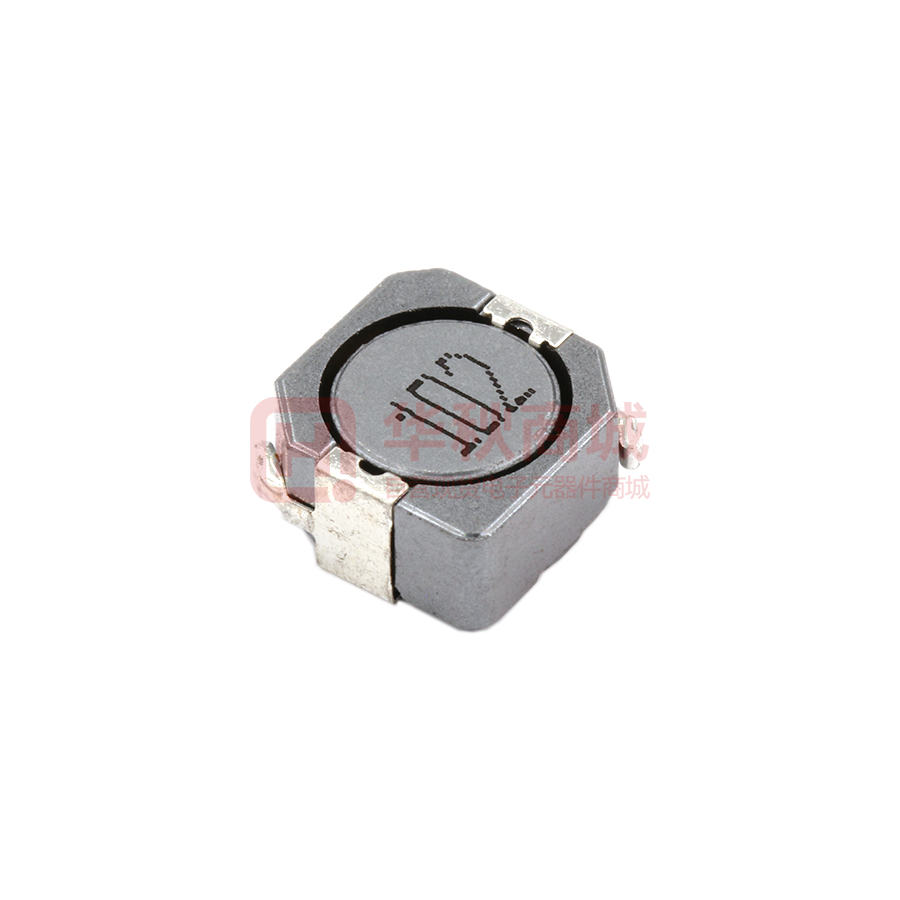

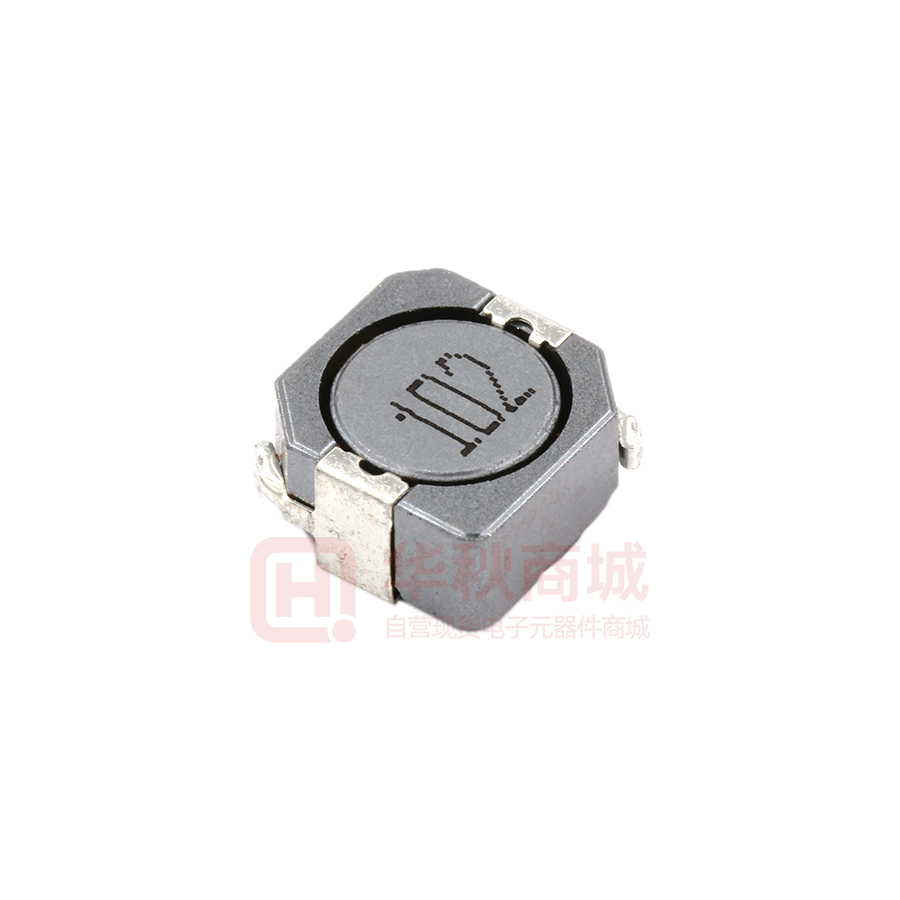

Images are for reference only
SMDRH105R-102MT
- Mfr Part #SMDRH105R-102MT
- ManufacturerSXN
- HQ Part #IN0035695
- PackageIND_10.3X10.4MM_SM
- Lead Time Ship immediately
DescriptionPower Inductors 1mH ±20% IND_10.3X10.4MM_SM 5.00mm 10.30 x 10.40mm 1.946Ω 420mA
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| DC Resistance (DCR) | 1.946Ω | |
| Operating Temperature | -40℃~+125℃ | |
| Saturation Current | 490mA | |
| Rated Current | 420mA | |
| Height | 5.00mm | |
| Size | 10.30 x 10.40mm | |
| Package / Case | IND_10.3X10.4MM_SM | |
| Installation Type | SMT | |
| Accuracy | ±20% | |
| Sensibility | 1mH | |
| Partlife Cycle | Active | |
| Storage Temperature | +5~+40℃ | |
| Lead Quantity | 2Pin | |
| Country of Origin | China | |
| Certification | RoHS,HF(halogen free) | |
| Original Manufacturer | ShenZhen ShunXiangNuo Electronics Co.,Ltd. | |
| Series | SMDRH | |
| Lead Free Or Not | Yes | |
| Test Frequency | 100KHz | |
| Shield | Shielded |
