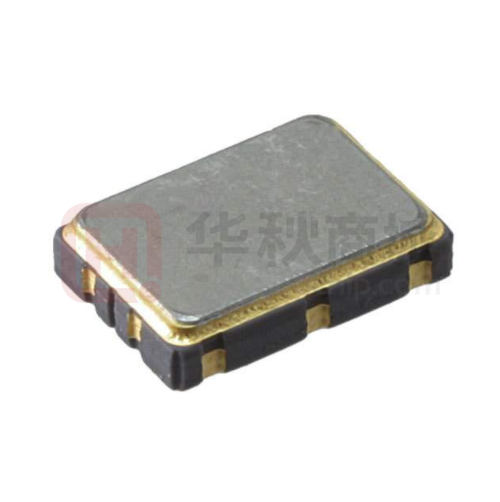

Images are for reference only
531BC156M250DG
- Mfr Part #531BC156M250DG
- ManufacturerSilicon Laboratories
- HQ Part #UN0003109
- PackageSMD7050_6P
- Lead Time Ship immediately
DescriptionActive Crystal Oscillators 156.25MHz ±7ppm SMD7050_6P 3.3V
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Annual Aging Rate | ±3ppm/year | |
| Lead Quantity | 6Pin | |
| Dominant Frequency | 156.25MHz | |
| Installation Type | SMT | |
| Frequency Error | ±7ppm | |
| Type | SPXO | |
| Size | 7.00 x 5.00mm | |
| Package / Case | SMD7050_6P | |
| Operating Temperature | -40℃~+85℃ | |
| Supply Voltage | 3.3V | |
| Output type | LVDS | |
| Current Consumption | 98mA | |
| Material | Quartz Crystal | |
| Pb Free | Yes | |
| Application | Consumer | |
| Product State | Active | |
| Packaging Technology | Seam Sealing | |
| Start up Time | 10ms | |
| Tolerance | ±10% | |
| Duty Cycle | 45/55% | |
| Phase Noise(dBc/KHz) | -144 | |
| Partlife Cycle | Active | |
| Output Load | 15pF | |
| Control Function | Enable/Disable | |
| Drive Ability | High | |
| Output Wave | Sine Wave | |
| Rise/Fall Time | 350ps | |
| Carries tape Std | 16mm | |
| Storage Temperature | -55℃~+125℃ | |
| Certification | RoHS | |
| Marking Type | Laser | |
| Country of Origin | China | |
| Original Manufacturer | Silicon Laboratories Inc. | |
| Frequency Stability | ±7ppm | |
| Series | Si531 | |
| Grade | Consumer | |
| Height | 1.80mm |
