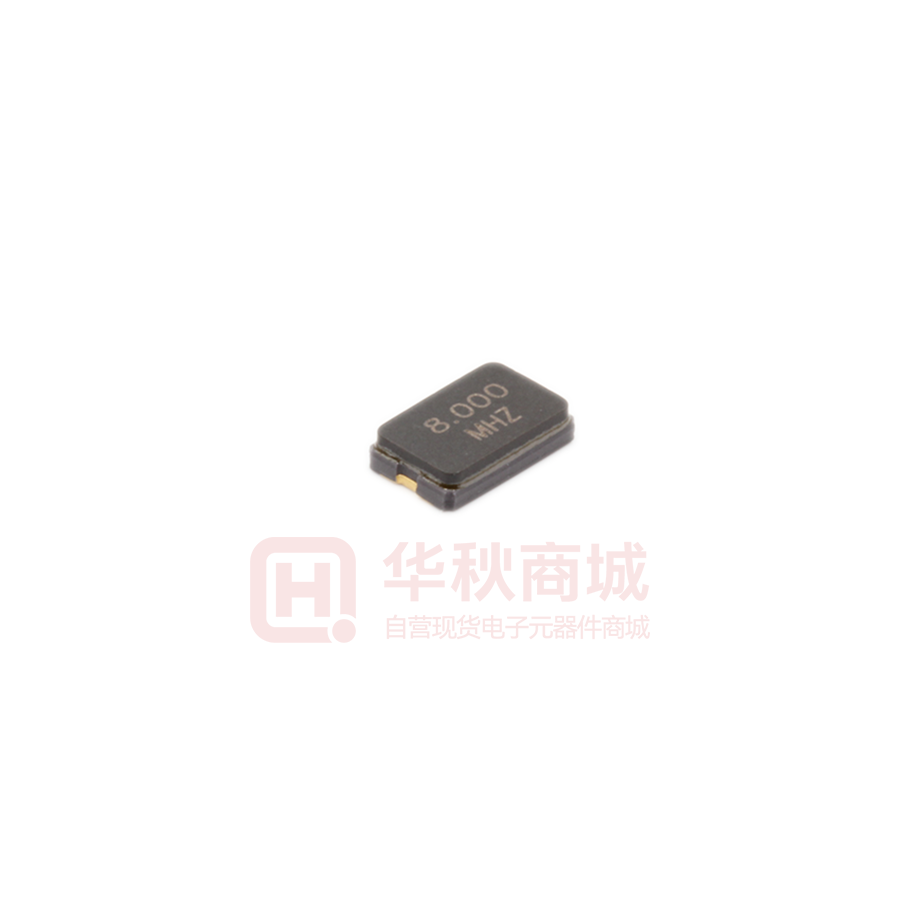

Images are for reference only

Passive Crystal Oscillators TAE SMD-5032_2P 8M 20PF 30PPM

  • Mfr Part #SMD-5032_2P 8M 20PF 30PPM
  • ManufacturerTAE
  • HQ Part #CR0251545
  • PackageSMD5032_2P
  • Lead Time Ship immediately
  • DescriptionPassive Crystal Oscillators 8MHz 20pF - ±20ppm -40℃~+85℃ SMD5032_2P

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Annual Aging Rate±3ppm/year
Lead Quantity2Pin
Dominant Frequency8MHz
Installation TypeSMT
Frequency Error±20ppm
Size5.00 x 3.20mm
Package / CaseSMD5032_2P
Operating Temperature-40~+85℃
OvertoneFundamental
Pb FreeYes
Product StateActive
Drive Level100μW
Shunt Capacitance(C0)7pF
Partlife CycleActive
Carries tape Std12mm
Storage Temperature-55~+125℃
Country of OriginChina
Original ManufacturerShenzhen ABEL Electronics Co., Ltd.
Frequency Stability±30ppm
Load Capacitance20pF
Height0.90mm
