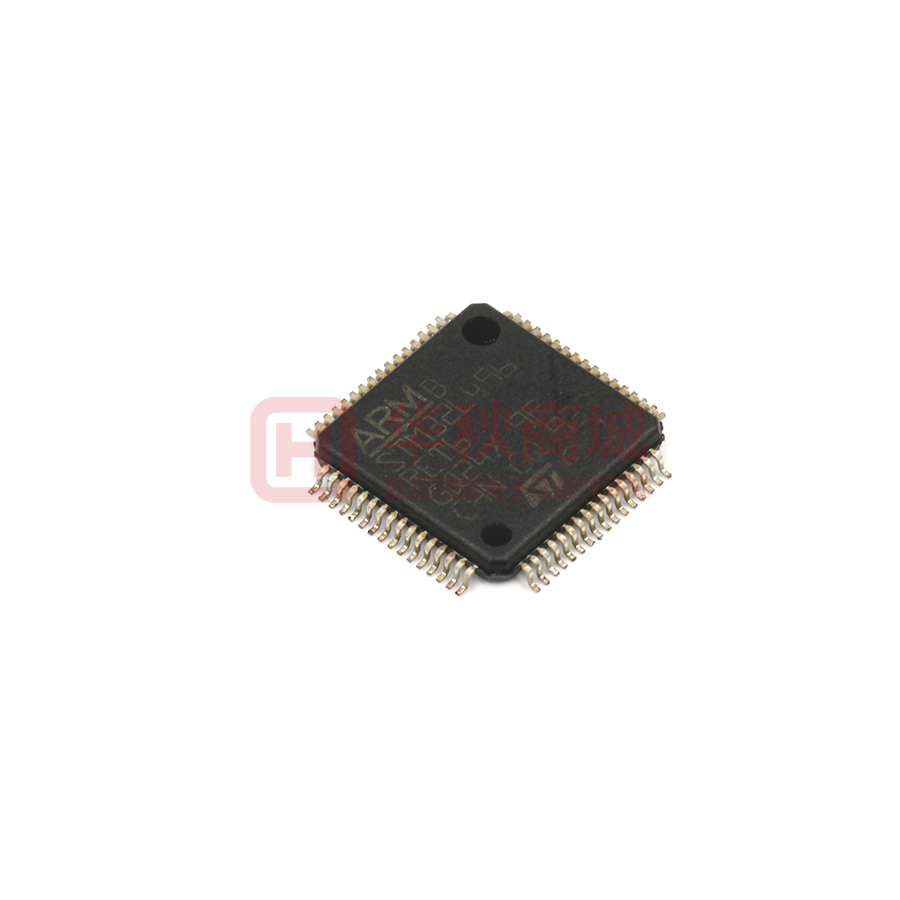

Images are for reference only

STM32L496RET6

  • Mfr Part #STM32L496RET6
  • ManufacturerST
  • HQ Part #IC0367290
  • PackageLQFP64_10X10MM
  • Lead Time Ship immediately
  • DescriptionUltra low power consumption Arm ® Cortex ®- M4 32-bit MCU+FPU, 100 DMIP, up to 1 MB flash memory, 320 KB SRAM, USB OTG FS, audio, external SMPS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Memory Ram Capacity320x8KB
ConnectivityCAN,I²C,IrDA,LIN,MMC/SD,QSPI,SAI,SPI,SWPMI,UART/USART,USBOTG
Operating Voltage (Range)1.71V~3.6V
Program Space TypeFLASH
Program Space Capacity512KB
Total Number Of I/O Ports52
Primary Frequency Speed (Max)80MHz
CPU CoreARM Cortex-M4
InterfaceCANbus, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB OTG
Installation Type-
Height1.60mm
Original ManufacturerSTMicroelectronics
BrandST
Size10.00 x 10.00mm
EEPROM Capacity-
PeripheralBrown-out Detect/Reset, DMA, LCD, PWM, WDT
Core Size-
Part StatusActive
Operating Temperature-40°C~85°C
Lead Free Or NotYes
SeriesSTM32L4
Moisture Sensitivity Level (MSL)-
