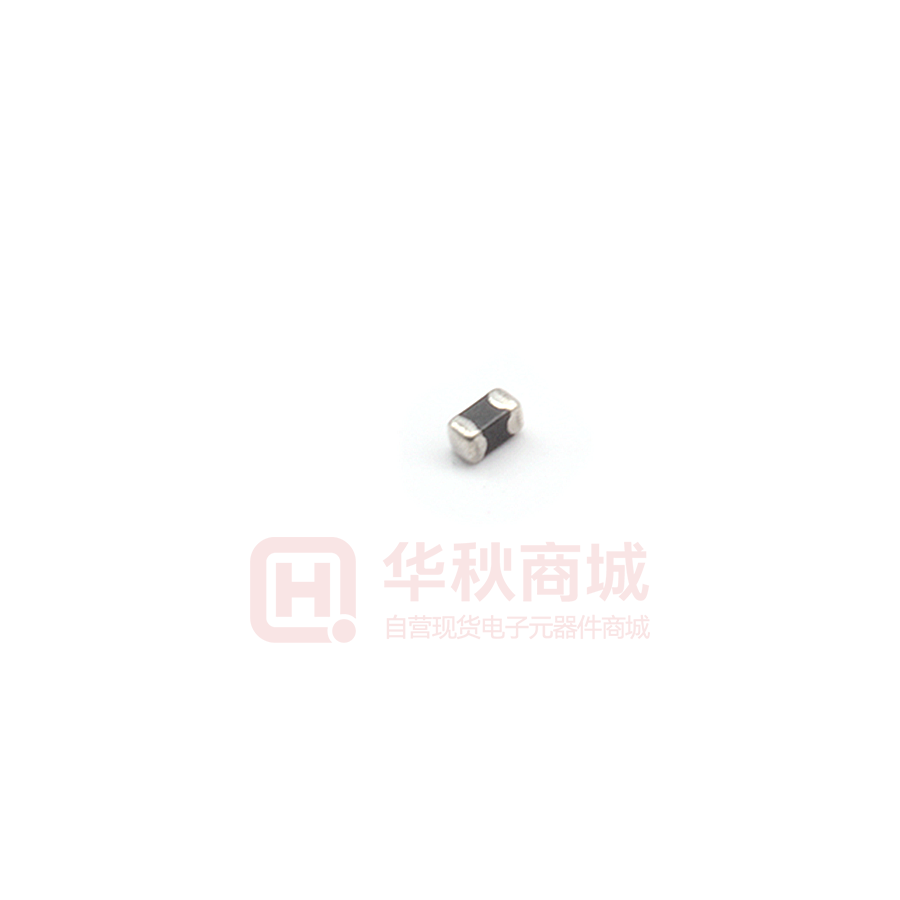

Images are for reference only

V0603MHS12NH

  • Mfr Part #V0603MHS12NH
  • ManufacturerLittelfuse
  • HQ Part #CP0059239
  • Package0603
  • Lead Time Ship immediately
  • Description55V 12pF@1MHz 0.015J 18V 14V 0603 Varistors ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Voltage Sensitive Voltage-
Rated Voltage-DC18V
Maximum Operating Voltage(DC)18V
Size1.60 x 0.80mm
Height1.00mm
Junction Capacitance12pF@1MHz
Installation TypeSMT
Operating Temperature-40℃~+125℃
Package / Case0603
Maximum Operating Voltage(AC)14V
Clamping Voltage55V
Energy0.015J
Lead Quantity2Pin
Shunt Capacitance(C0)12pF@1MHz
Partlife CycleActive
Storage Temperature-40~+150℃
CertificationRoHS,HF(halogen free)
Country of OriginAmerica
Original ManufacturerLittelfuse,Inc.
Supply VoltageOriginalV
GradeConsumer
Part StatusActive
SeriesMHS
Moisture Sensitivity Level (MSL)-
Lead Free Or NotYes
