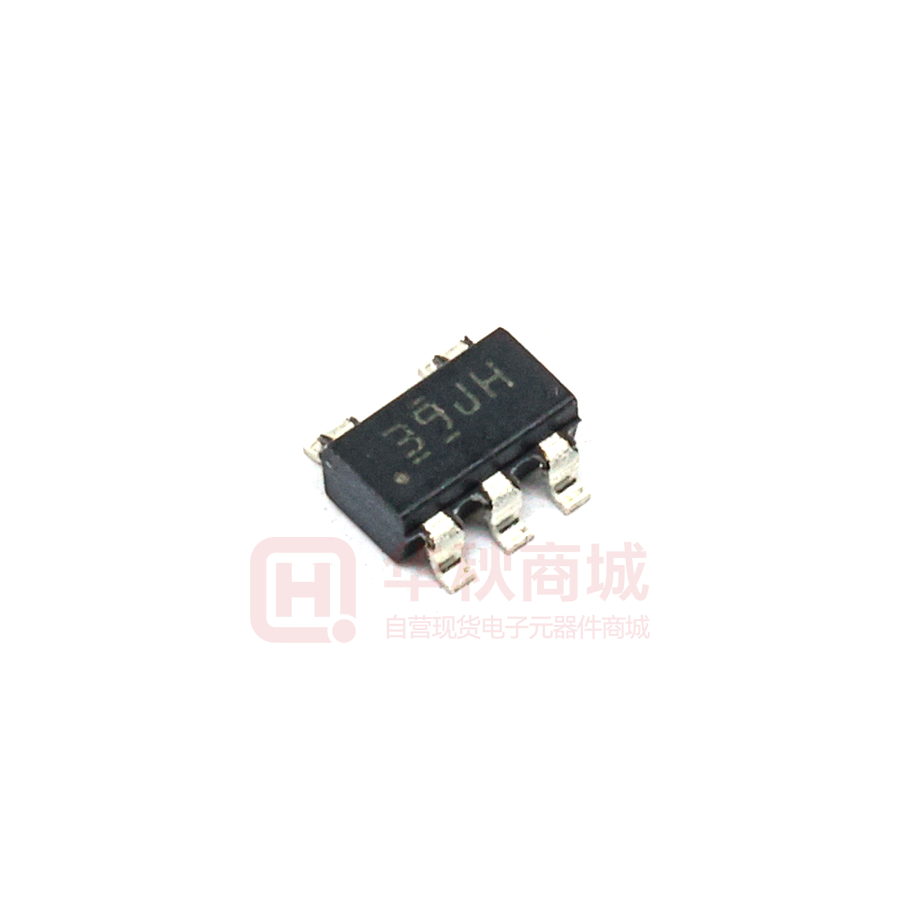

Images are for reference only
SN74AHC1G86DBVR
- Mfr Part #SN74AHC1G86DBVR
- ManufacturerTI
- HQ Part #IC0263220
- PackageSOT23-5
- Lead Time Ship immediately
Description2V~5.5V 1uA 8mA 1 8.8ns@5V,50pF XORGate 8mA SOT-23-5 Gates ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Characteristic | Schmitt Trigger Input | |
| Quiescent Current | 1µA | |
| Logic Level - High | 1.5V~3.85V | |
| Input Low Voltage | 0.5V~1.65V | |
| Logic Type | - | |
| Package / Case | SOT23-5 | |
| Installation Type | SMT | |
| Supply Voltage | 2V~5.5V | |
| Lead Quantity | 5Pin | |
| Height | 1.45mm | |
| L x W/Size | 2.9 x 1.6mm | |
| Original Manufacturer | Texas Instruments Incorporated | |
| Brand | TI | |
| Operating Temperature | -40~+85℃ | |
| Part Status | Active | |
| Series | 74AHC | |
| Moisture Sensitivity Level (MSL) | - |
