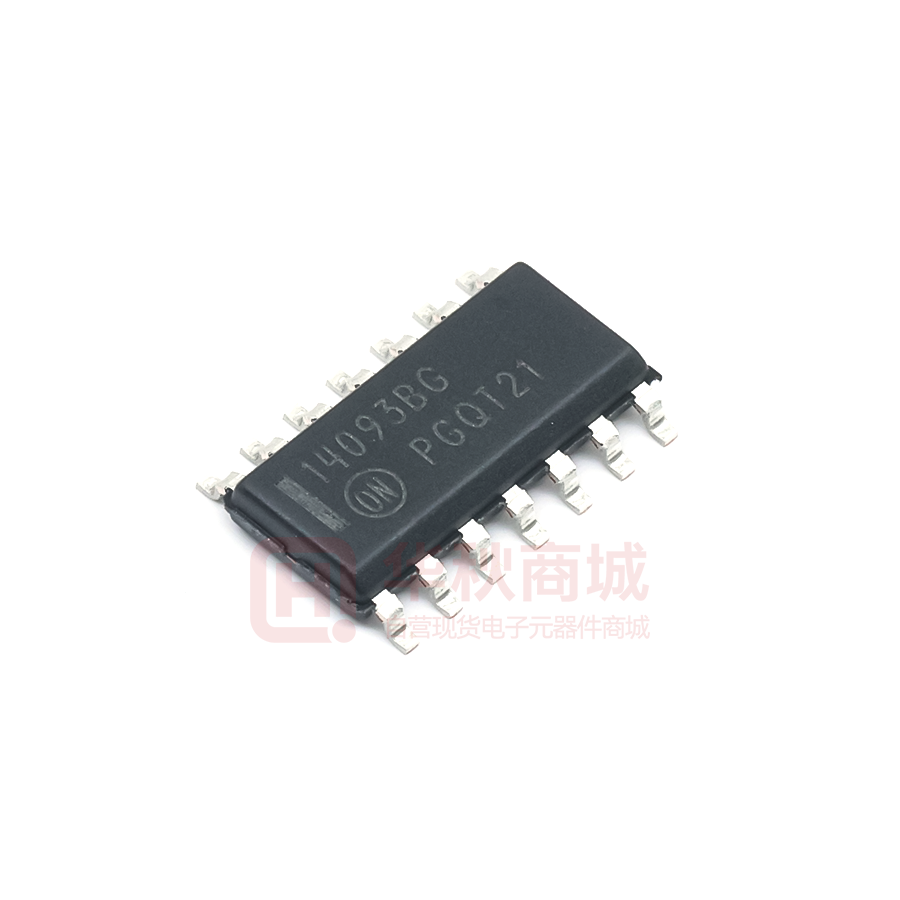

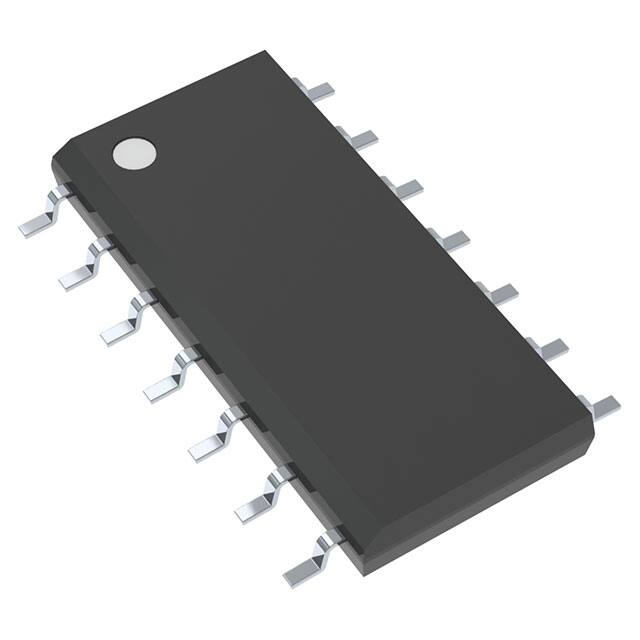

Images are for reference only

Universal Logic Gates ON MC14093BDR2G

  • Mfr Part #MC14093BDR2G
  • ManufacturerON
  • HQ Part #IC0304614
  • PackageSOIC14_150MIL
  • Lead Time Ship immediately
  • Description4000B 1uA 3V~18V 8.8mA 4 80ns@15V,50pF NAND Gates 8.8mA SOIC-14 Gates ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
CharacteristicSchmitt Trigger
Quiescent Current1µA
Logic Level - High3.6V~10.8V
Number Of Inputs Per Channel2
Static Working Current (Typ)1µA
Logic Level - Low0.9V~4V
Maximum Propagation Delay At Different V, Maximum Cl80ns@15V,50pF
Number Of Channels (Number Of Components)4Channel
Logic Type (Function)-
Package / CaseSOIC14_150MIL
Installation TypeSMT
Supply Voltage3V~18V
Number Of Circuits (Number Of Components)4
Output Current8.8mA
TypeNAND Gate
Lead Quantity14Pins
L x W/Size8.65 x 3.90mm
Original ManufacturerON Semiconductor Inc.
Delay Time - Propagation80ns
Operating Temperature-55~+125℃
Output Current High, Low8.8mA,8.8mA
Part StatusActive
Moisture Sensitivity Level (Msl)-
