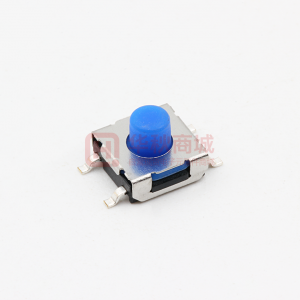

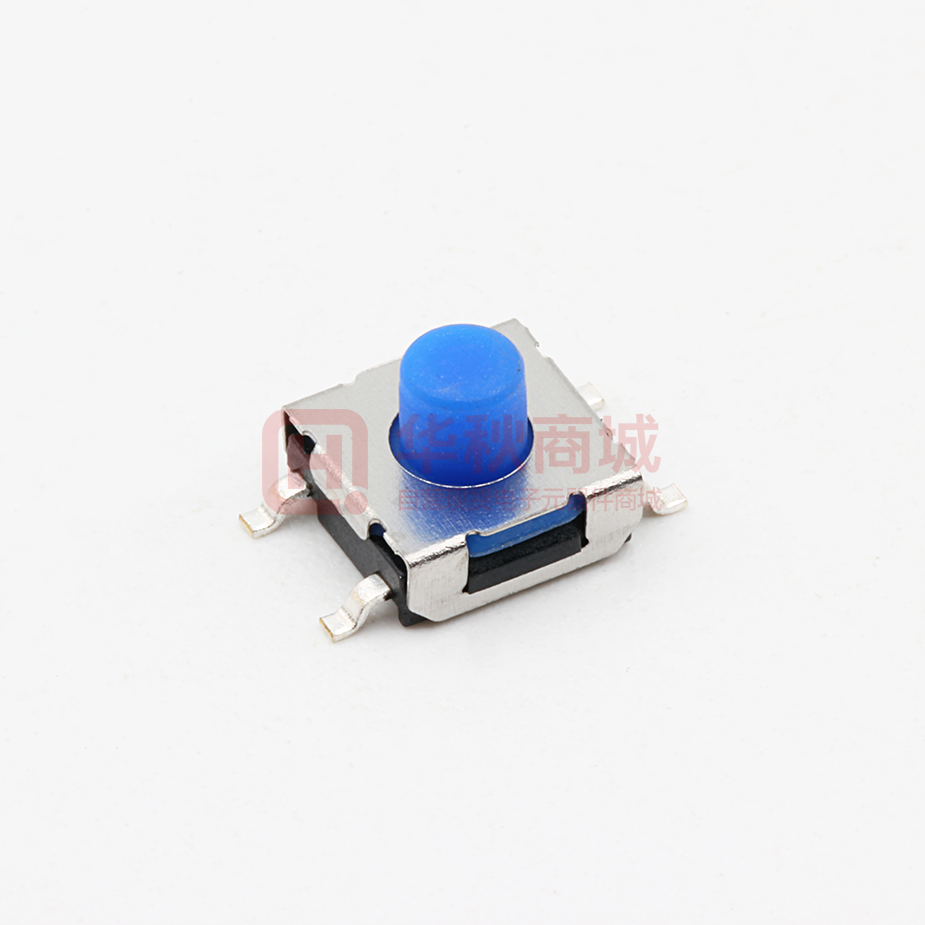

Images are for reference only
TS-1158B-C-D-BL
- Mfr Part #TS-1158B-C-D-BL
- ManufacturerXKB
- HQ Part #SW0049389
- PackageSW4_6.5X6.4MM_SM
- Lead Time Ship immediately
DescriptionTactile Switchs SW4_6.5X6.4MM_SM SPST 50mA 12V 260gf 100000Cycles 4Pins 5.00mm
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Package / Case | SW4_6.5x6.4mm_SM | |
| Force | 260gf | |
| Mechanical Life | 100,000Cycles | |
| Installation Type | SMT | |
| Rated Current-DC | 50mA | |
| Lead Quantity | 4Pin | |
| Contact Form | SPST | |
| Contact Resistance | 100mΩ | |
| Insulation Resistance | 100MΩ @ DC500V | |
| Partlife Cycle | Active | |
| Storage Temperature | -30~+80℃ | |
| Country of Origin | China | |
| Original Manufacturer | Guangdong XKB Technology Co., Ltd. | |
| Brand | XKB | |
| Switch Digits | 1 | |
| Part Status | Active | |
| Series | TS-1158B | |
| Lead Free Or Not | Yes | |
| Size | 6.50 x 6.40mm | |
| Operating Force | 260gf | |
| Operating Life | 100000Cycles | |
| Rated Voltage - Dc | 12V | |
| Operating Temperature | -30~+85℃ | |
| Height | 0.197"（5.00mm） |
