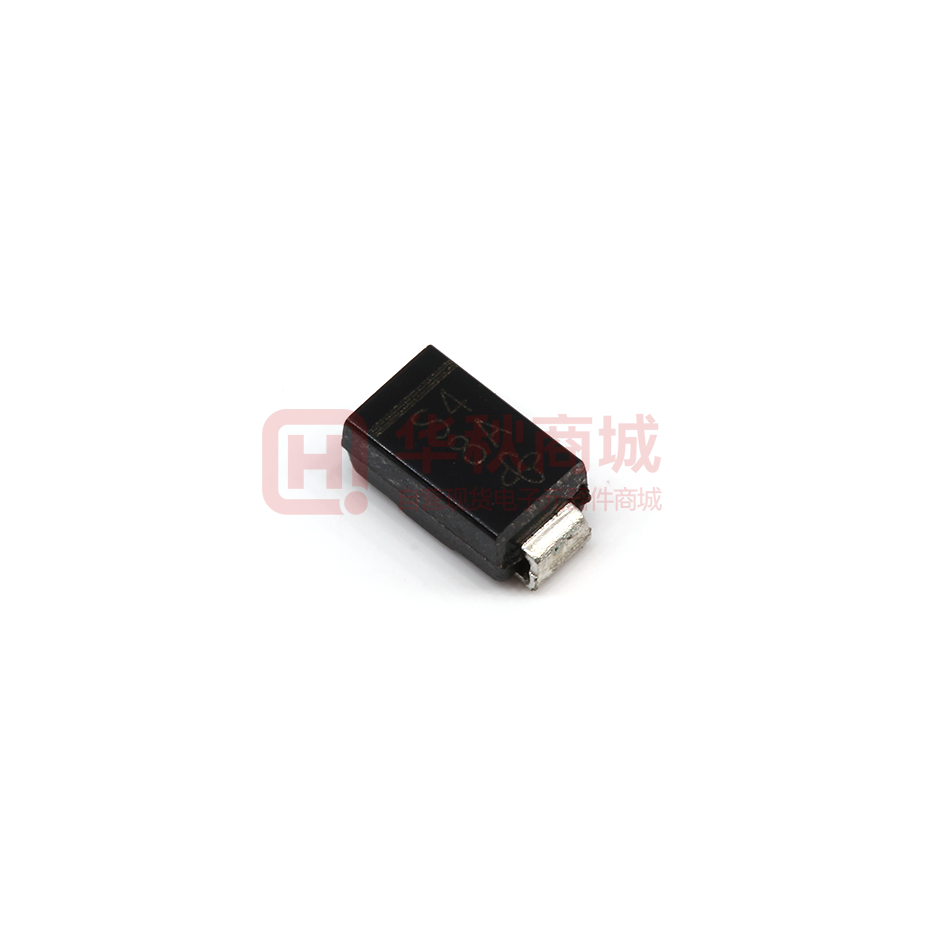

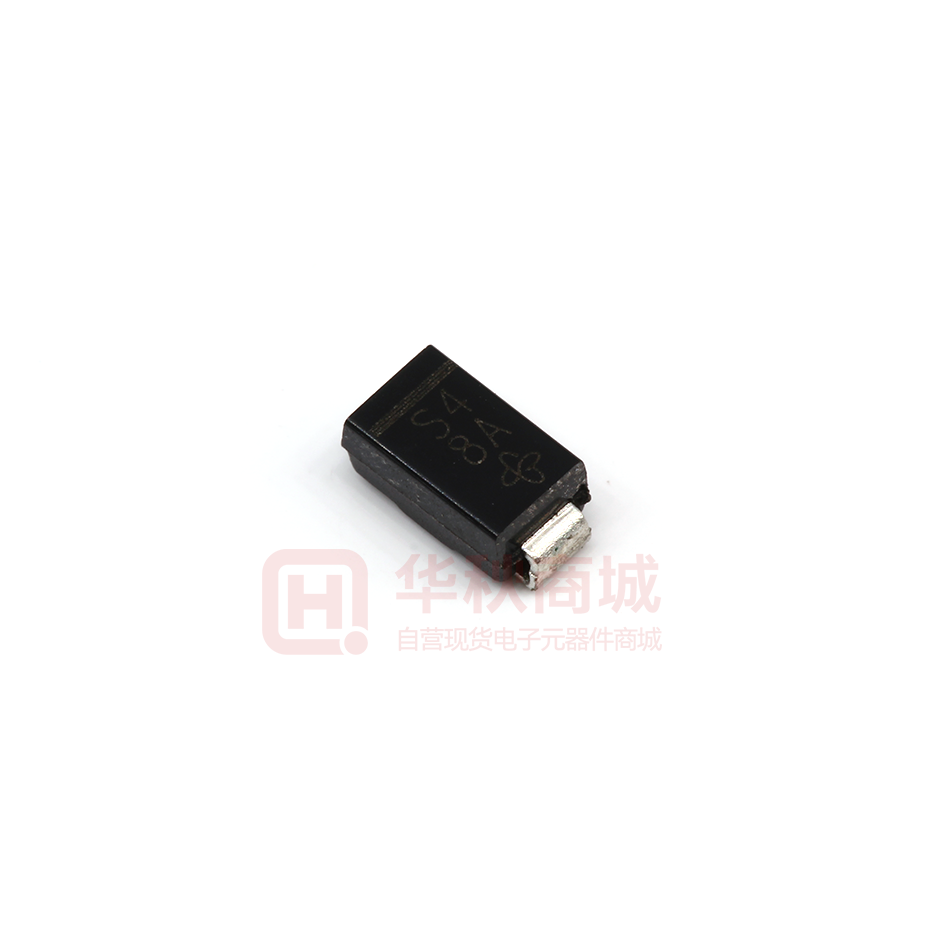

Images are for reference only

Schottky Diode Vishay SS14HE3_A/H

  • Mfr Part #SS14HE3_A/H
  • ManufacturerVishay
  • HQ Part #DS0010417
  • PackageSMA(DO-214AC)
  • Lead Time Ship immediately
  • DescriptionSchottky Diodes & Rectifiers 40 Volt 1.0 Amp 40 Amp IFSM

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Reverse Peak Voltage (Maximum)40V
Diode ConfigurationSingle
Operating Temperature-65~+150℃(TJ)
Moisture Sensitivity Level (MSL)-
Diode TypeSchottky
Reverse Withstand Voltage Vr40V
Average Rectified Current1A
Reverse Recovery Time (trr)-
Reverse Leakage Current Ir200µA
Package / CaseSMA(DO-214AC)
Installation TypeSMT
Forward Voltage VF Max500mV
Ifsm - Peak Forward Surge Current40A
Lead Quantity2pin
Height2.29mm
L x W/Size4.50 x 2.79mm
Country of OriginAmerica
Original ManufacturerVishay Intertechnology, Inc.
BrandVishay
Application-
Series-
Part StatusActive
Lead Free Or NotYes
Terms of Service
ShippingDelivery Period For stock parts, orders placed on HQonline from 8:00-16:00 will be dispatched on the same day
Once shipped, the transit time depends on the logistics provider you choose:
DHL Express, 3-5 days
FedEx International, 3-5 days
China Post Airmail, 15-45 days
Shipping RateShipping rate for your order can be found in the shopping cart.
Shipping OptionWe provide DHL, FedEx, and China Post Airmail shipping.
Shipping TrackingWe will notify you by email with a tracking number once the order is shipped. You can also find the tracking number in the order history.
Returning/WarrantyReturning HQonline only accepts return requests due to quality issues. Return requests should be submitted within 30 days of delivery of the goods, please contact customer service for a return authorization.
Parts should be unused and in original packaging.
The customer has to take charge of the shipping.
Warranty All HQonline purchases come with a 30-day money-back return policy, plus a 90-day HQonline warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by the customer to follow instructions, product modification, negligent or improper operation.
OrderingHow to Buy HQonline accepts online orders.
Add to cart > Check out > Submit order > Complete payment >Delivery
Payment PayPal, Payoneer, Credit Card includes Visa, Master, American Express, JCB, Discover.
Western Union, Bank Transfer, Payoneer, AliExpress.
1,464 In Stock
Qty
Minimum1 Mutiple1
Unit Price$ 0.0557
Ext Price$ 0
Add to Cart
Buy Now
Pricing (USD)
QtyUnit PriceExt Price
1+$0.12273 $0.12273
10+$0.11259 $1.12590
30+$0.11056 $3.31680
100+$0.10448 $10.44800
