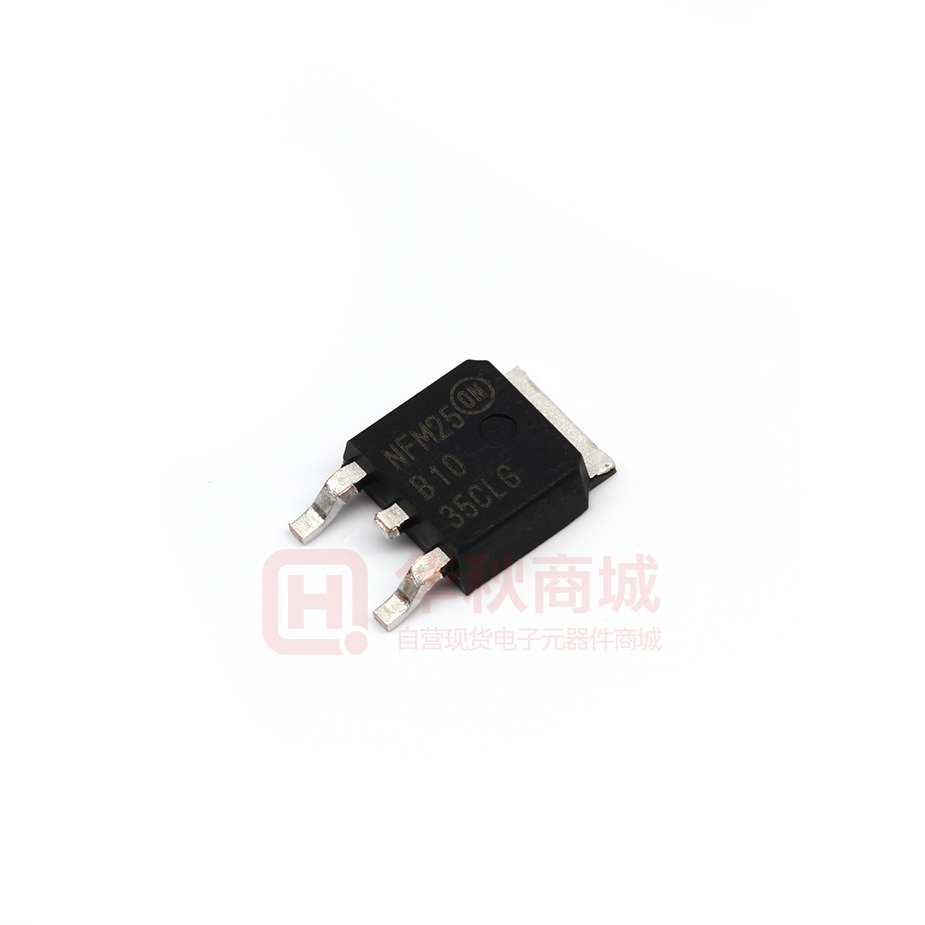

Images are for reference only
MBRD1035CTLT4G
- Mfr Part #MBRD1035CTLT4G
- ManufacturerON
- HQ Part #DS0025588
- PackageTO-252
- Lead Time Ship immediately
Description35V 470mV@5A 5A TO-252-2(DPAK) Schottky Barrier Diodes (SBD) ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Reverse Peak Voltage (Maximum) | 35V | |
| Diode Configuration | Common Cathode | |
| Operating Temperature | -55℃~150℃ | |
| Reverse Withstand Voltage Vr | 35V | |
| Average Rectified Current | 10A | |
| Reverse Recovery Time (trr) | - | |
| Reverse Leakage Current Ir | 2mA | |
| Package / Case | TO-252 | |
| Installation Type | SMT | |
| Forward Voltage VF Max | 470mV | |
| Ifsm - Peak Forward Surge Current | 50A | |
| Storage Temperature | -55~+150℃ | |
| Lead Quantity | 3Pin | |
| Height | 2.38mm | |
| L x W/Size | 6.73 x 6.22mm | |
| Country of Origin | America | |
| Original Manufacturer | ON Semiconductor | |
| Brand | Onsemi | |
| Application | - | |
| Series | MBRD1035CTL，SBRD81035CTL | |
| Part Status | Active |
