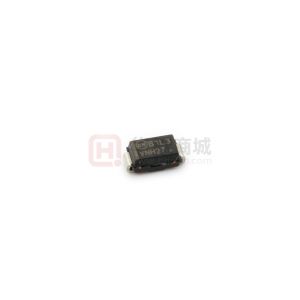

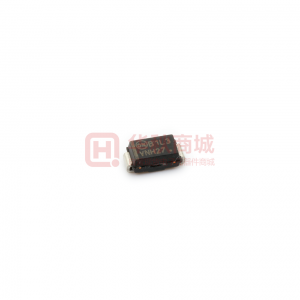

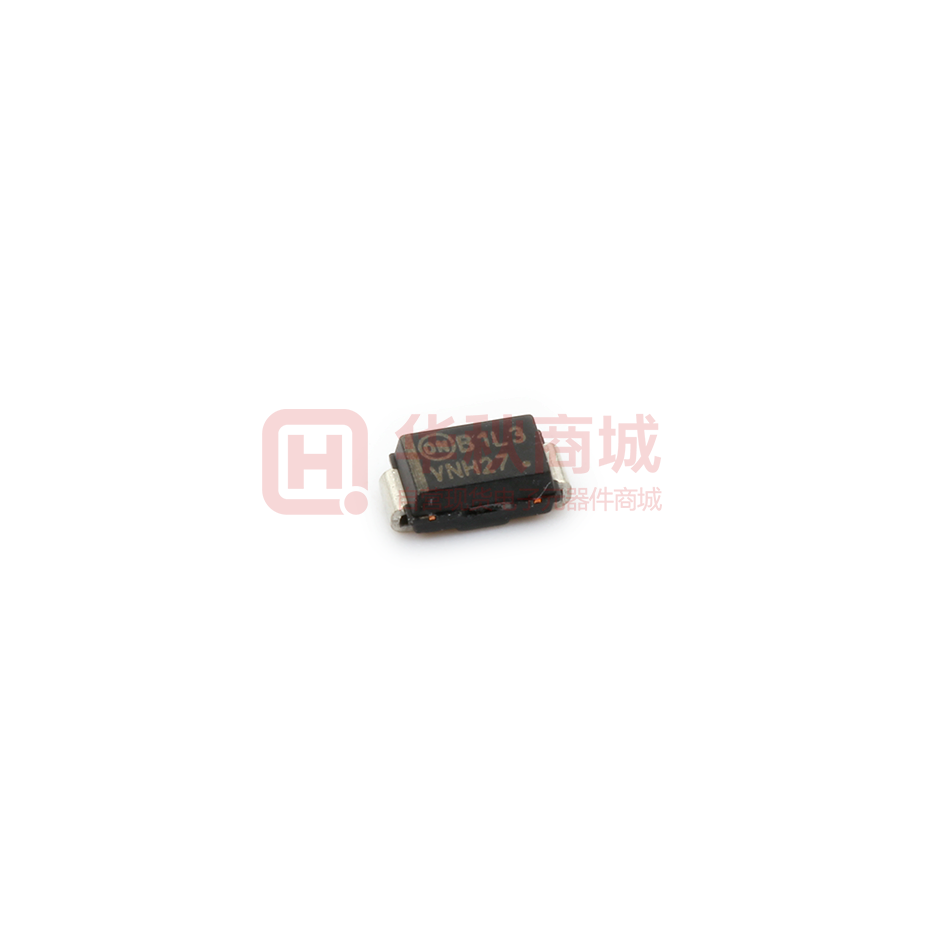

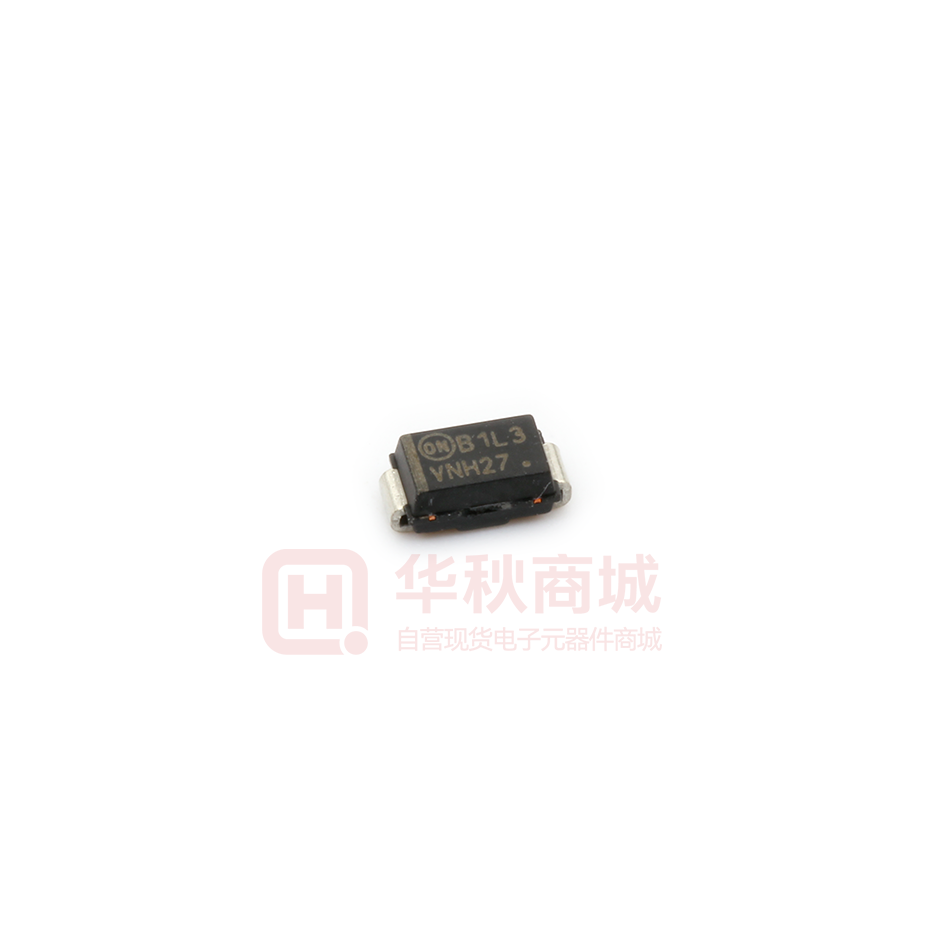

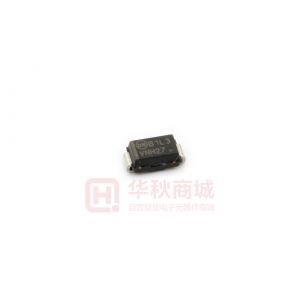

Images are for reference only

Schottky Diode ON MBRA130LT3G

  • Mfr Part #MBRA130LT3G
  • ManufacturerON
  • HQ Part #DS0002959
  • PackageSMA
  • Lead Time Ship immediately
  • Description30V 410mV@1A 1A SMA(DO-214AC) Schottky Barrier Diodes (SBD) ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Reverse Peak Voltage (Maximum)30V
Operating Temperature Junction-55°C~125°C
Operating Temperature-55℃~150℃
Moisture Sensitivity Level (Msl)-
Diode Type-
Reverse Withstand Voltage Vr30V
Average Rectification Current If1A
Forward Voltage Drop Vf410mV
Reverse Recovery Time (trr)-
Reverse Leakage Current Ir25mA
Supplier Device PackagingSMA
Package / CaseSMA
Installation TypeSMT
Lead Spacing4.07mm
Forward Voltage VF Max350mV
Ifsm - Peak Forward Surge Current25A
Vr - Reverse Voltage30V
Storage Temperature-55~+150℃
Lead Quantity2pin
L x W/Size4.32 x 2.60mm
Country of OriginAmerica
Original ManufacturerON Semiconductor
Manufacturer'S Standard Lead Time-
Part StatusActive
Lead Free Or Not-
