Restocking

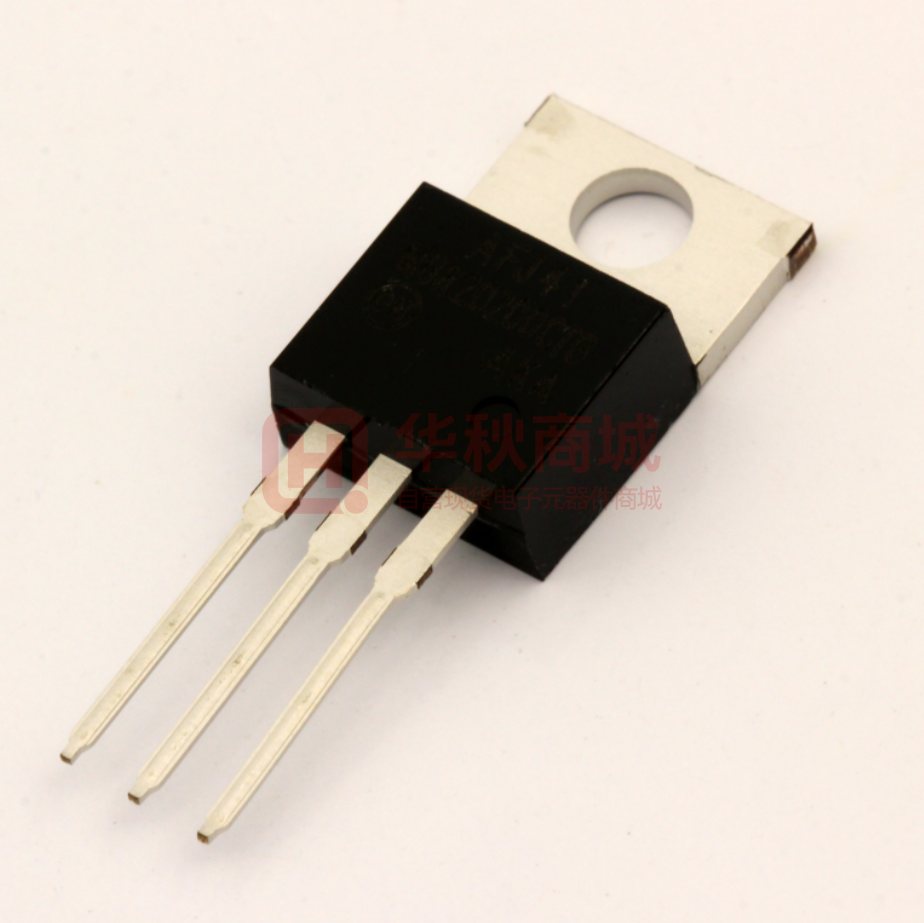

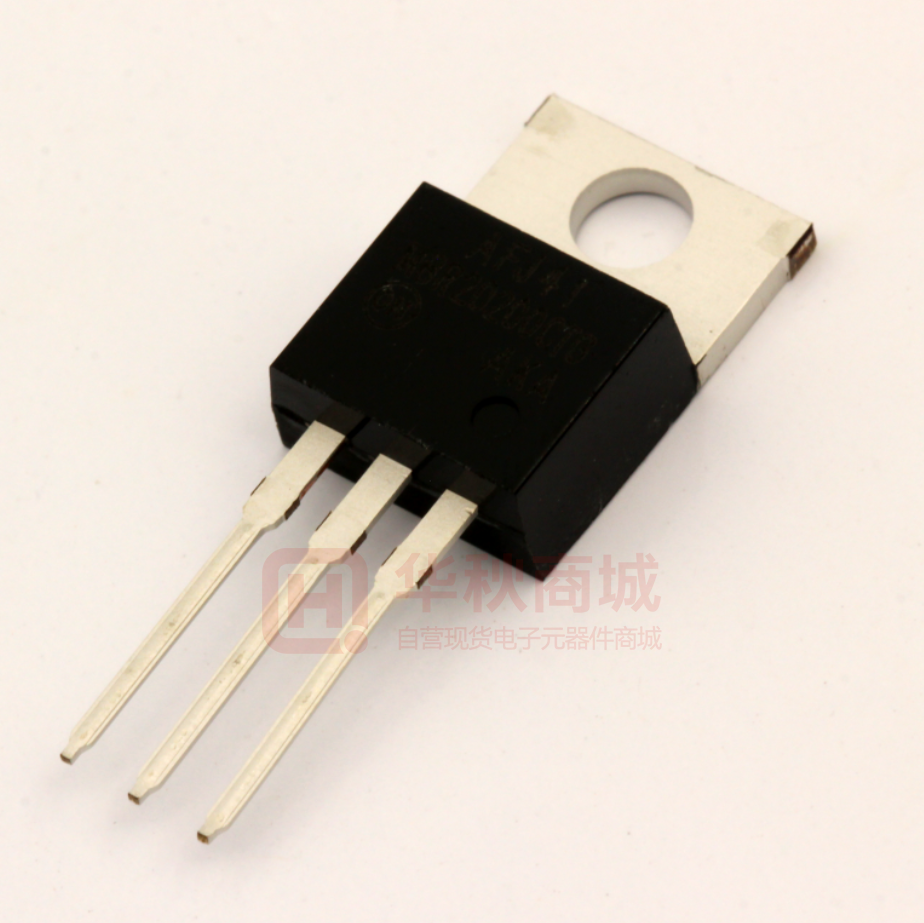

Images are for reference only
Schottky Diode ON MBR20200CTG
- Mfr Part #MBR20200CTG
- ManufacturerON
- HQ Part #DS0025916
- PackageTO220-3
- Lead Time Ship immediately
Description200V 10A 900mV@10A TO-220 Schottky Barrier Diodes (SBD) ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Configuration | Common Cathode | |
| Reverse Peak Voltage (Maximum) | 200V | |
| Packing | Tube packing | |
| Current Average Rectification (Io) (Per Diode) | 10A | |
| Diode Configuration | Common Cathode | |
| Operating Temperature Junction | -65°C~175°C | |
| Operating Temperature | -65℃~175℃ | |
| Moisture Sensitivity Level (Msl) | - | |
| Diode Type | Schottky | |
| Reverse Withstand Voltage Vr | 200V | |
| Average Rectification Current If | 10A | |
| Forward Voltage Drop Vf | 800mV | |
| Speed | - | |
| Reverse Recovery Time (trr) | - | |
| Reverse Leakage Current Ir | 1mA | |
| Supplier Device Packaging | TO-220AB | |
| Package / Case | TO220 | |
| Installation Type | DIP | |
| Lead Spacing | 2.54mm | |
| Forward Voltage VF Max | 900mV | |
| Vr - Reverse Voltage | 200V | |
| Partlife Cycle | Active | |
| Storage Temperature | -65~+175℃ | |
| Lead Quantity | 3Pin | |
| Height | 15.75mm | |
| L x W/Size | 10.53 x 4.83mm | |
| MPQ | 50pcs | |
| Country of Origin | America | |
| Original Manufacturer | ON Semiconductor Inc. | |
| Brand | Onsemi | |
| Application | Consumer | |
| Current Dc Forward (If) | 10A | |
| Part Status | Active |
