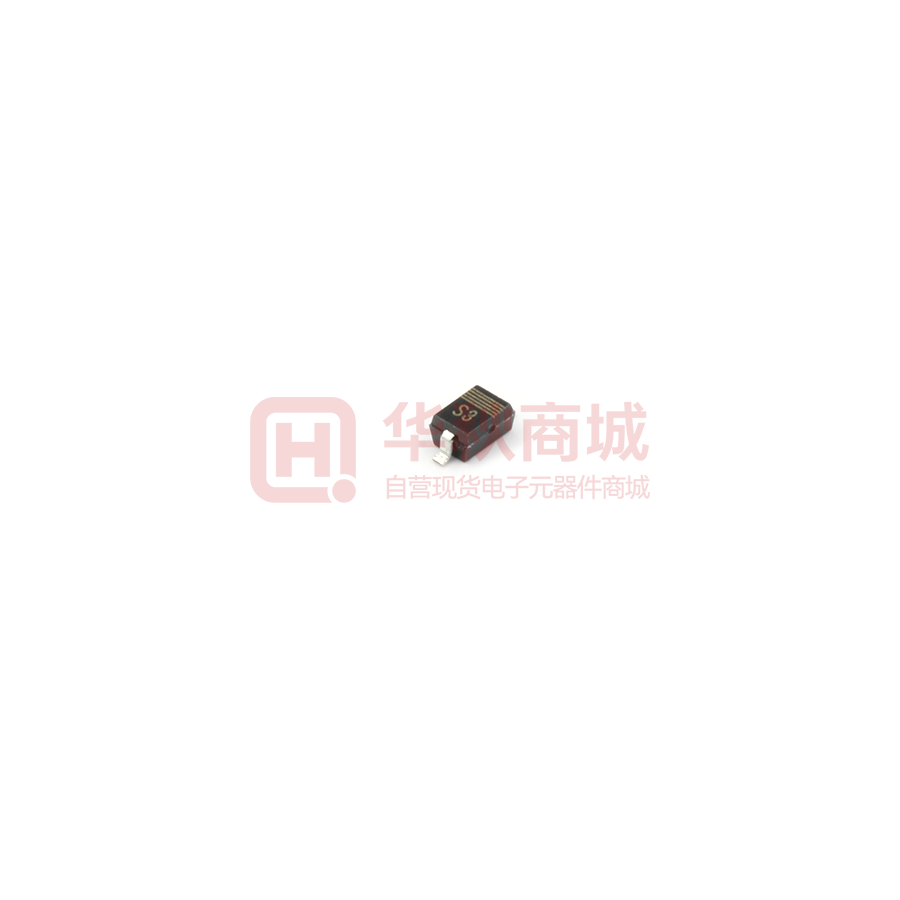

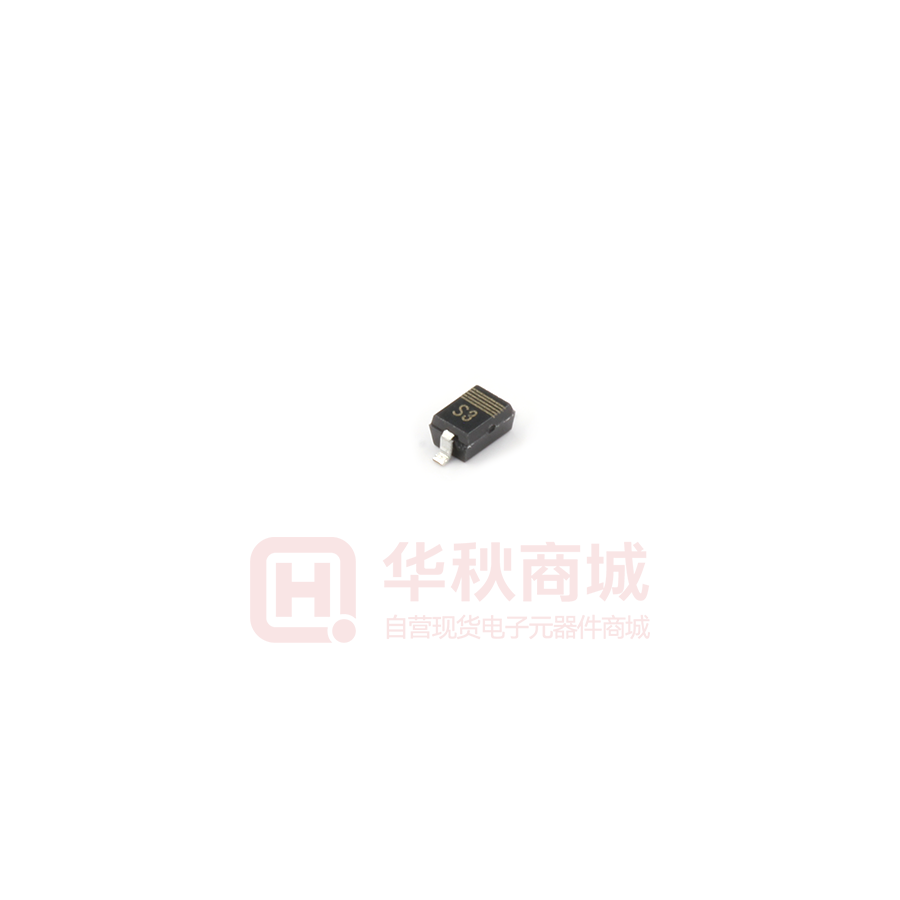

  • Mfr Part #PMEG2020AEA,115
  • ManufacturerNexperia
  • HQ Part #DS0007824
  • PackageSOD323
  • Lead Time Ship immediately
  • Description20V 525mV@2A 2A SOD-323 Schottky Barrier Diodes (SBD) ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Diode ConfigurationSingle
Operating Temperature+150℃(TJ)
Moisture Sensitivity Level (MSL)-
Diode Type-
Reverse Withstand Voltage Vr20V
Average Rectified Current2A
Reverse Recovery Time (trr)-
Reverse Leakage Current Ir200µA
Package / CaseSOD323
Installation TypeSMT
Junction Capacitance70pF
Forward Voltage VF Max525mV
Ifsm - Peak Forward Surge Current9A
Storage Temperature-65~+150℃
Lead Quantity2pin
L x W/Size1.80 x 1.35mm
Printing CodeS3
Country of OriginChina
Original ManufacturerNexperia Semiconductor Co., Ltd.
Forward Current2A
Total Capacitance C70pF
Part StatusActive
Lead Free Or NotYes
