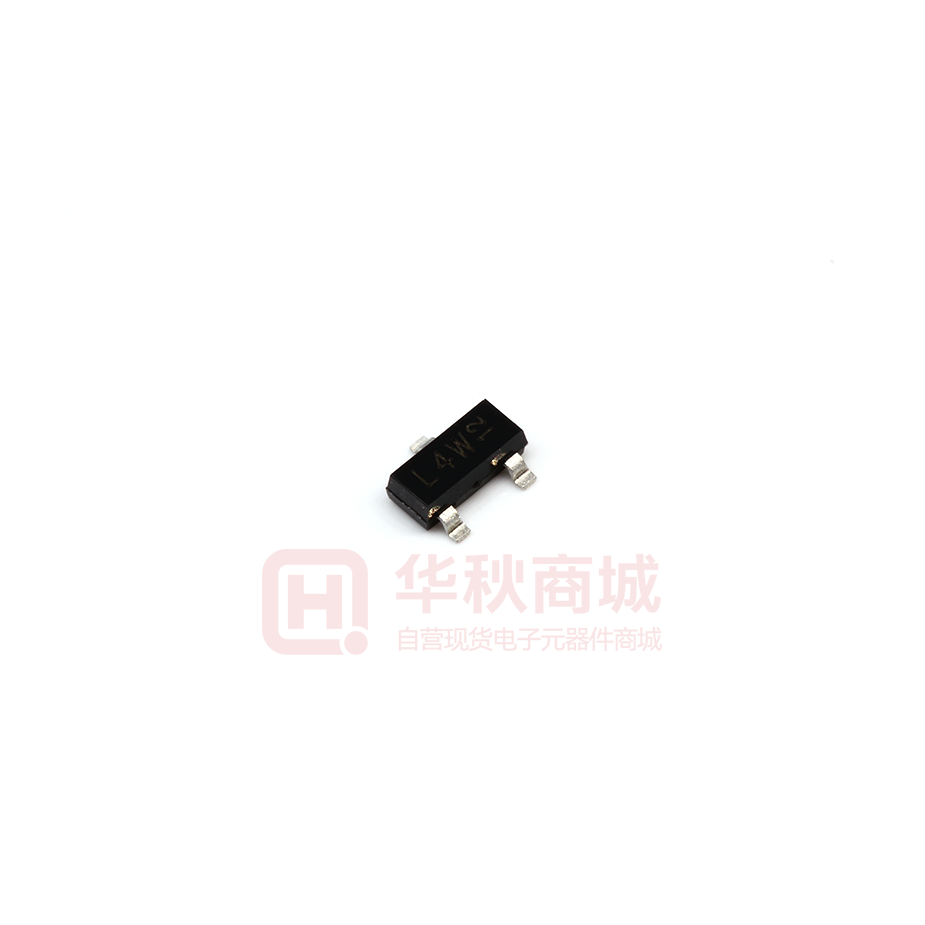

BAT54,215

  • Mfr Part #BAT54,215
  • ManufacturerNexperia
  • HQ Part #DS0002541
  • PackageSOT-23
  • Lead Time Ship immediately
  • Description30V 800mV@100mA 200mA SOT-23-3 Schottky Barrier Diodes (SBD) ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Diode ConfigurationSingle
Operating Temperature-55℃~150℃
Moisture Sensitivity Level (MSL)-
Diode Type-
Reverse Withstand Voltage Vr30V
Average Rectified Current200mA
Forward Voltage Drop Vf800mV
Reverse Recovery Time (trr)5ns
Reverse Leakage Current Ir2µA
Installation TypeSMT
Junction Capacitance10pF
Forward Voltage VF Max400mV
Storage Temperature-65~+150℃
Lead Quantity3Pin
Height1.00mm
L x W/Size3.00 x 1.40mm
CertificationAEC-Q101
Printing CodeL4*
Country of OriginHolland
Original ManufacturerNexperia Semiconductor Co., Ltd.
BrandNexperia
Application-
Forward Current200mA
Series-
Part StatusActive
Lead Free Or NotYes
