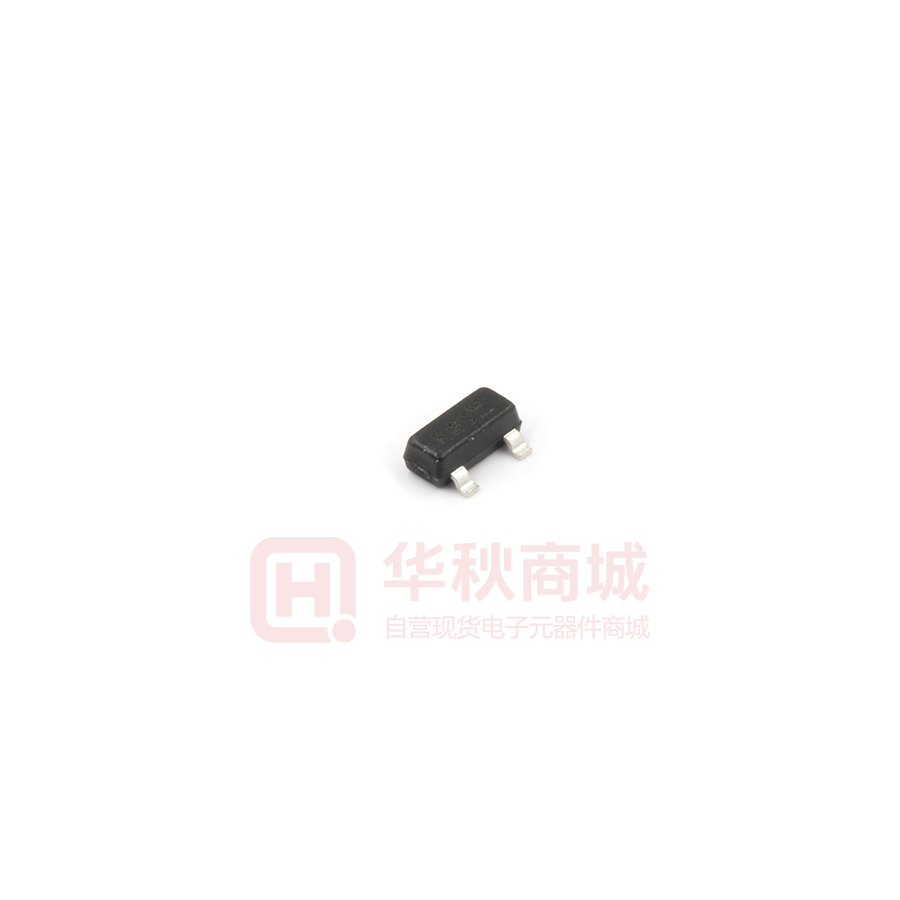

Images are for reference only

SDM40E20LC-7

  • Mfr Part #SDM40E20LC-7
  • ManufacturerDIODES
  • HQ Part #DS0025869
  • PackageSOT-23
  • Lead Time Ship immediately
  • Description20V 310mV@100mA 400mA SOT-23 Schottky Barrier Diodes (SBD) ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Maximum Dissipated Power300mW
Reverse Peak Voltage (Maximum)20V
Diode Configuration-
Operating Temperature-65~+125℃
Moisture Sensitivity Level (MSL)-
Diode Type-
Reverse Withstand Voltage Vr20V
Average Rectified Current400mA
Forward Voltage Drop Vf0.31V
Reverse Recovery Time (trr)-
Reverse Leakage Current Ir250uA
Package / CaseSOT23-3
Installation TypeSMT
Forward Voltage VF Max430mV
Ifsm - Peak Forward Surge Current2A
Breakdown Voltage20V
Storage Temperature-65~+125℃
Lead Quantity3Pin
Height1.20mm
L x W/Size3.00 x 1.40mm
CertificationRoHS
Country of OriginAmerica
Original ManufacturerDiodes Incorporated
BrandDIODES
Application-
Forward Current400mA
Total Capacitance C120pF
Part StatusActive
Lead Free Or NotNo
