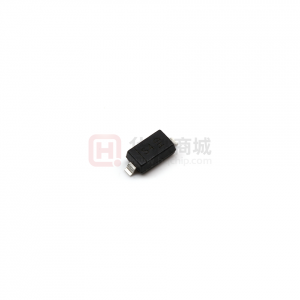

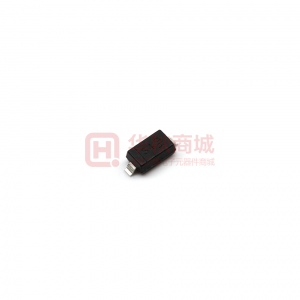

Images are for reference only
SD103AW-7-F
- Mfr Part #SD103AW-7-F
- ManufacturerDIODES
- HQ Part #DS0007846
- PackageSOD123
- Lead Time Ship immediately
Description40V 600mV@200mA 350mA SOD-123 Schottky Barrier Diodes (SBD) ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Maximum Dissipated Power | 367mW | |
| Reverse Peak Voltage (Maximum) | 40V | |
| Diode Configuration | Single | |
| Operating Temperature | -55℃~150℃ | |
| Moisture Sensitivity Level (MSL) | - | |
| Moisture Sensitivity Level (MSL) | - | |
| Diode Type | - | |
| Reverse Withstand Voltage Vr | 40V | |
| Average Rectified Current | 350mA | |
| Reverse Recovery Time (trr) | 10ns | |
| Reverse Leakage Current Ir | 5uA | |
| Package / Case | SOD123 | |
| Installation Type | SMT | |
| Forward Voltage VF Max | 600mV | |
| Ifsm - Peak Forward Surge Current | 1.5A | |
| Breakdown Voltage | 40V | |
| Storage Temperature | -55~+150℃ | |
| Lead Quantity | 2pin | |
| Height | 1.22mm | |
| L x W/Size | 2.70 x 1.55mm | |
| Certification | RoHS | |
| Country of Origin | America | |
| Original Manufacturer | Diodes Incorporated | |
| Brand | DIODES | |
| Application | - | |
| Forward Current | 350mA | |
| Total Capacitance C | 28pF | |
| Series | - | |
| Part Status | Active | |
| Lead Free Or Not | No |
