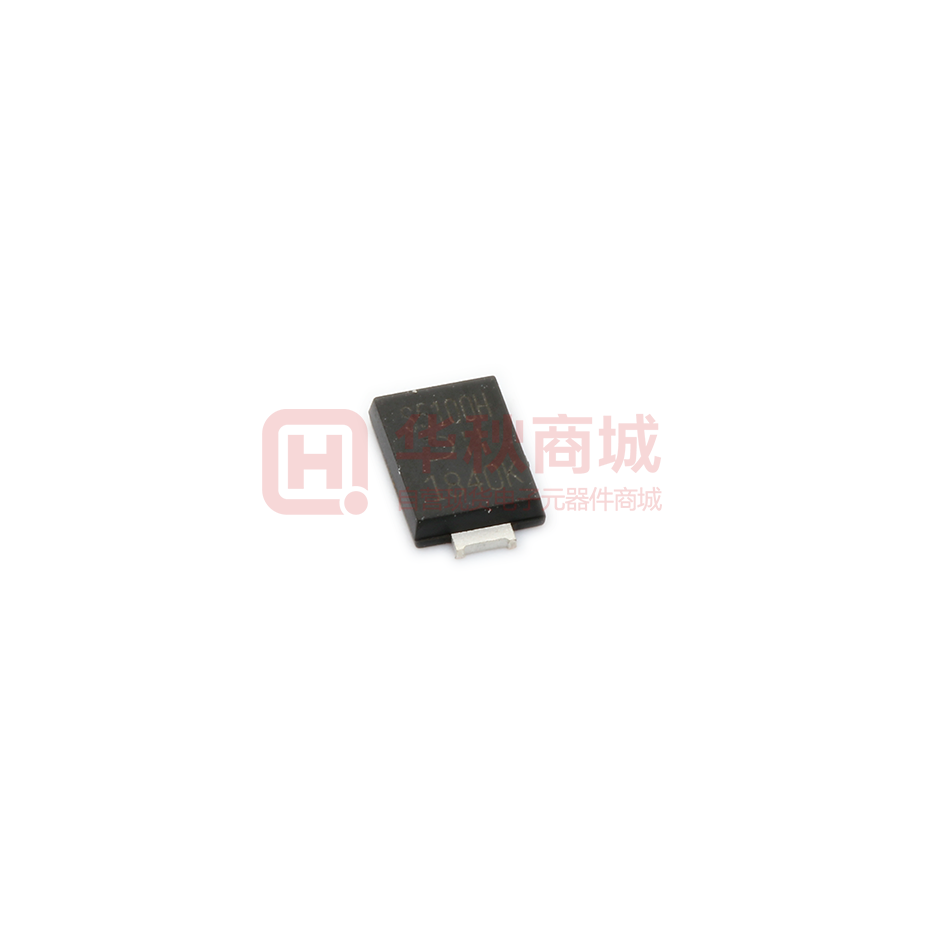

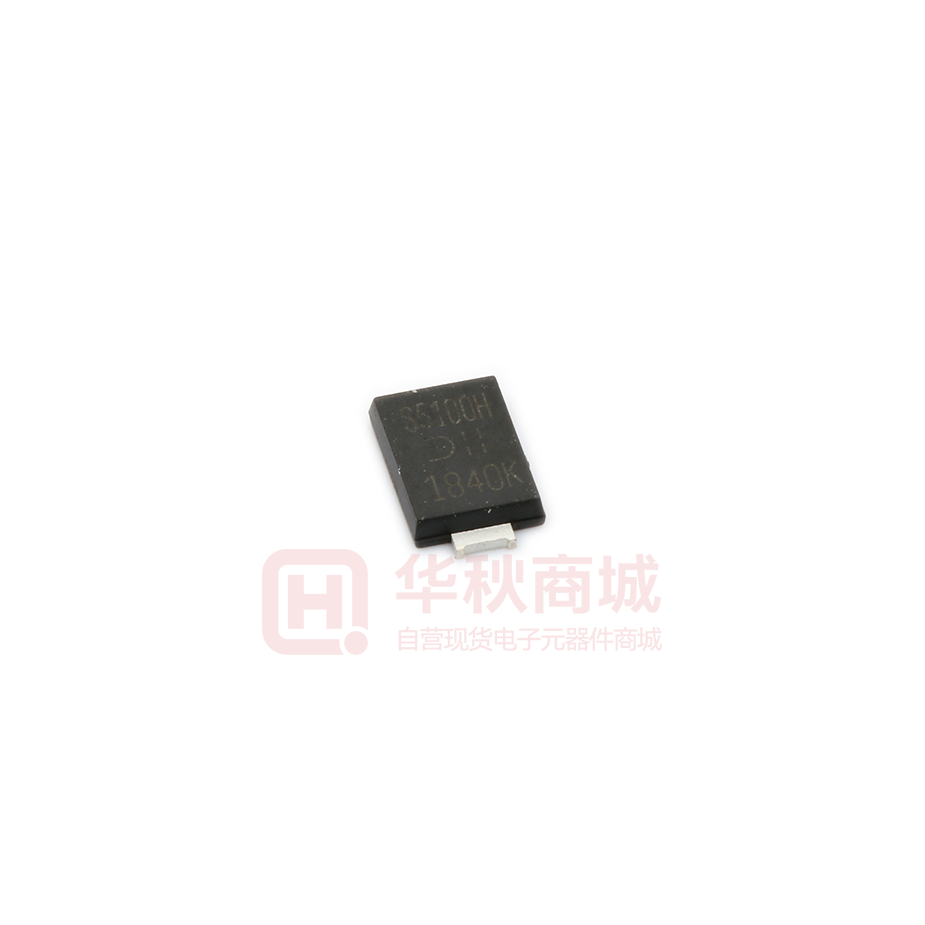

Schottky Diode DIODES PDS5100H-13

  • Mfr Part #PDS5100H-13
  • ManufacturerDIODES
  • HQ Part #DS0007912
  • PackagePowerDI5
  • Lead Time Ship immediately
  • Description100V 5A 710mV@5A Power-DI-5 Schottky Barrier Diodes (SBD) ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Reverse Peak Voltage (Maximum)100V
Operating Temperature Junction-65°C~175°C
Operating Temperature-65℃~175℃
Moisture Sensitivity Level (Msl)-
Diode Type-
Reverse Withstand Voltage Vr100V
Average Rectification Current If5A
Forward Voltage Drop Vf710mV
Reverse Recovery Time (trr)-
Reverse Leakage Current Ir3.5µA
Supplier Device PackagingPowerDI™5
Package / CasePowerDI5
Installation TypeSMT
Lead Spacing1.84mm
Forward Voltage VF Max800mV
Ifsm - Peak Forward Surge Current250A
Breakdown Voltage100V
Storage Temperature-65~+175℃
Lead Quantity2pin
L x W/Size5.45 x 4.05mm
CertificationRoHS, AEC-Q101
Country of OriginAmerica
Original ManufacturerDiodes Incorporated
Part StatusActive
Lead Free Or NotNo
