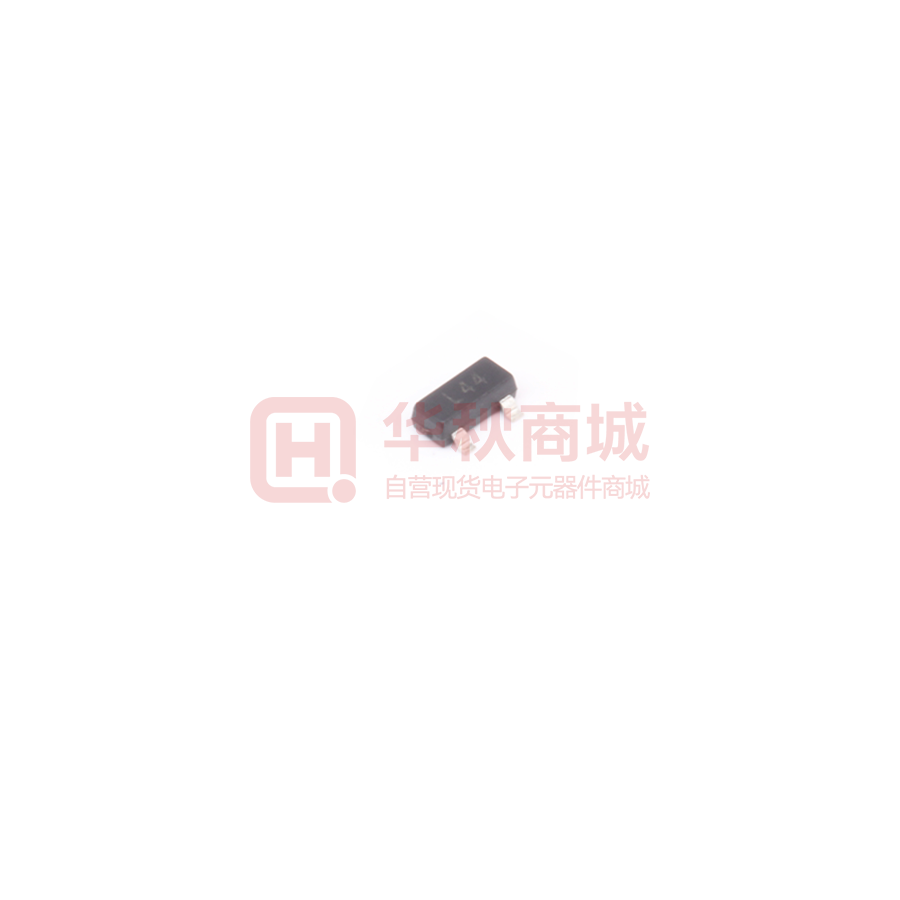

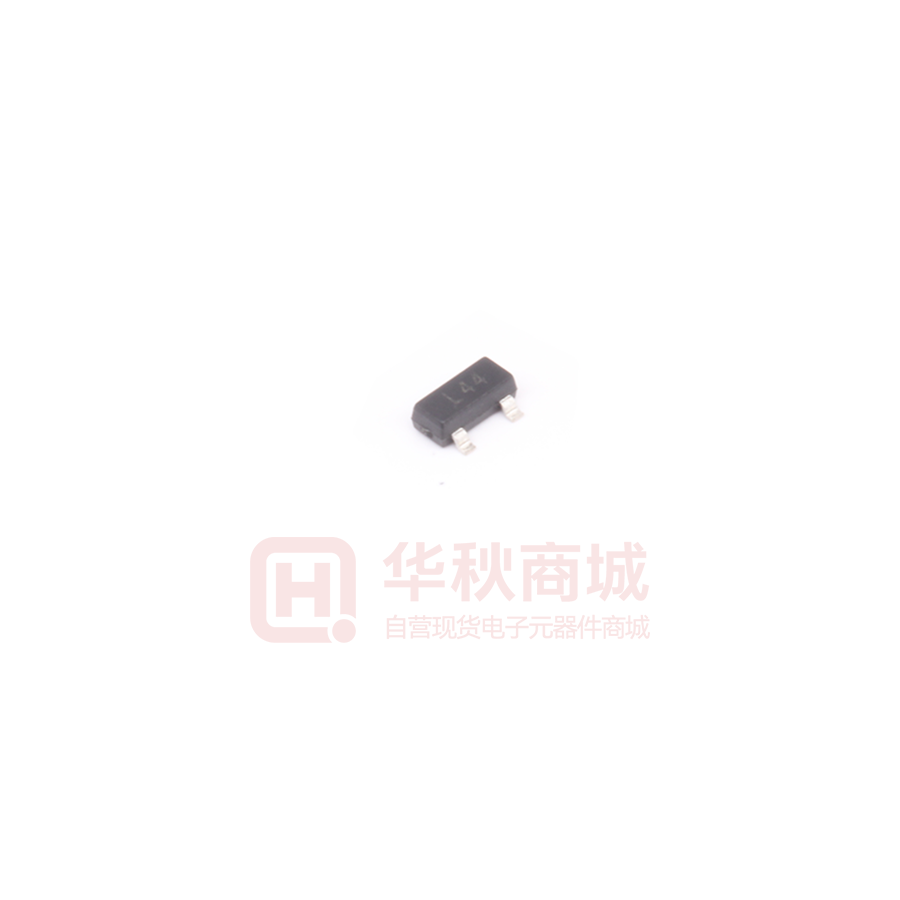

BAT54STA
- Mfr Part #BAT54STA
- ManufacturerDIODES
- HQ Part #DS0025758
- PackageSOT23
- Lead Time Ship immediately
Description2.5uA@25V 30V Dual 200mA 530mV@100mA SOT-23 Schottky Barrier Diodes (SBD) ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Maximum Dissipated Power | 330mW | |
| Maximum Dissipated Power | 330mW | |
| Operating Temperature | +125℃ | |
| Operating Temperature | +125℃ | |
| Reverse Withstand Voltage Vr | 30V | |
| Reverse Withstand Voltage Vr | 30V | |
| Average Rectified Current | 200mA | |
| Average Rectified Current | 200mA | |
| Reverse Recovery Time (trr) | 5ns | |
| Reverse Recovery Time (trr) | 5ns | |
| Reverse Leakage Current Ir | 2.5µA | |
| Reverse Leakage Current Ir | 2.5µA | |
| Package / Case | SOT23-3 | |
| Package / Case | SOT23 | |
| Installation Type | SMT | |
| Installation Type | SMT | |
| Forward Voltage VF Max | 400mV | |
| Forward Voltage VF Max | 400mV | |
| Partlife Cycle | Active | |
| Partlife Cycle | Active | |
| Storage Temperature | -55~+150℃ | |
| Storage Temperature | -55~+150℃ | |
| Lead Quantity | 3Pin | |
| Height | 1.00mm | |
| L x W/Size | 2.90 x 1.30mm | |
| Country of Origin | America | |
| Country of Origin | America | |
| Original Manufacturer | Diodes Incorporated | |
| Original Manufacturer | Diodes Incorporated | |
| Brand | DIODES | |
| Brand | DIODES | |
| Application | Consumer | |
| Application | Consumer | |
| Part Status | Active | |
| Part Status | Active |
