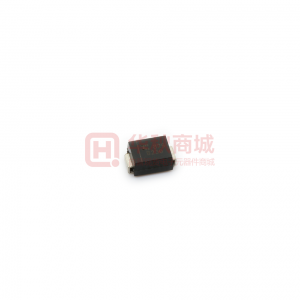

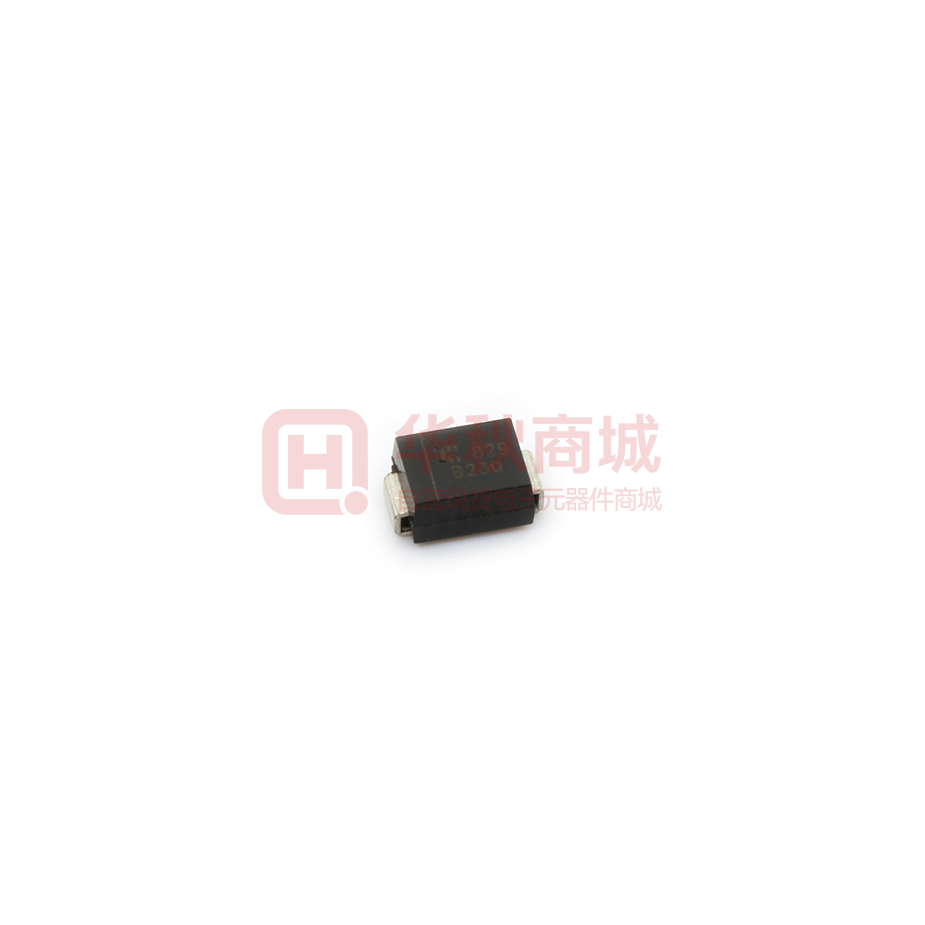

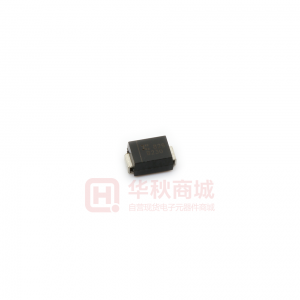

Images are for reference only
B230-13-F
- Mfr Part #B230-13-F
- ManufacturerDIODES
- HQ Part #DS0003169
- PackageSMB(DO-214AA)
- Lead Time Ship immediately
Description30V 500mV@2A 2A SMB(DO-214AA) Schottky Barrier Diodes (SBD) ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Maximum Dissipated Power | 450mW | |
| Reverse Peak Voltage (Maximum) | 30V | |
| Diode Configuration | Single | |
| Operating Temperature | -65~+150℃(TJ) | |
| Moisture Sensitivity Level (MSL) | - | |
| Diode Type | - | |
| Reverse Withstand Voltage Vr | 30V | |
| Average Rectified Current | 2A | |
| Forward Voltage Drop Vf | 500mV | |
| Reverse Recovery Time (trr) | - | |
| Reverse Leakage Current Ir | 500µA | |
| Package / Case | SMB(DO-214AA) | |
| Installation Type | SMT | |
| Junction Capacitance | 200pF | |
| Vf(Max Instantaneous Forward Voltage) | 500mV | |
| Ifsm - Peak Forward Surge Current | 50A | |
| Partlife Cycle | Active | |
| Storage Temperature | -65~+150℃ | |
| Lead Quantity | 2pin | |
| Height | 2.50mm | |
| L x W/Size | 4.57 x 3.94mm | |
| Certification | RoHS | |
| Country of Origin | America | |
| Original Manufacturer | Diodes Incorporated | |
| Brand | DIODES | |
| Application | Consumer | |
| Forward Current | 2A | |
| Series | - | |
| Part Status | Active | |
| Lead Free Or Not | Yes |
