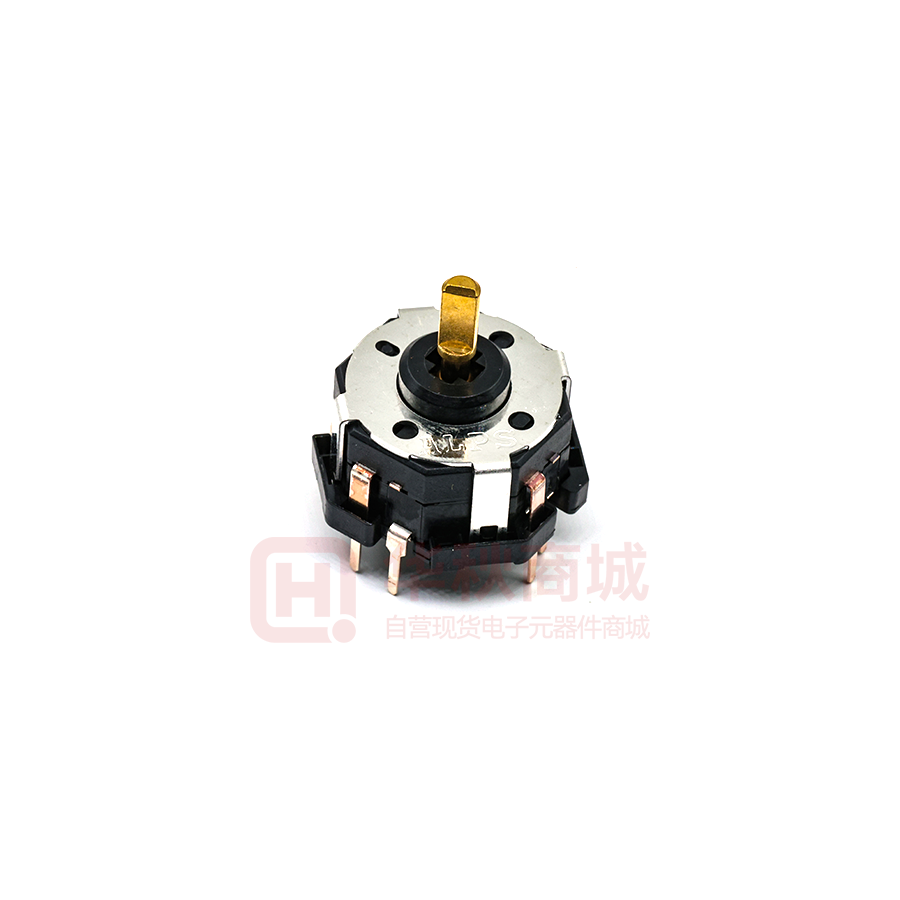

Images are for reference only
RKJXT1F42001
- Mfr Part #RKJXT1F42001
- ManufacturerALPS
- HQ Part #SW0049646
- Package插件
- Lead Time Ship immediately
DescriptionPlugin Multi-Directional Switches ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Package / Case | DIP | |
| Package / Case | SW11_17X17MM_TM | |
| Terminal Type | - | |
| Installation Type | DIP | |
| Installation Type | DIP | |
| Contact Coating | - | |
| Actuator Type | - | |
| Rated Voltage | 5VDC | |
| Rated Current-DC | 10mA | |
| Rated Current-DC | 10mA | |
| Lead Quantity | 11Pin | |
| Lead Quantity | 11Pin | |
| Contact Form | SP4T | |
| Partlife Cycle | Active | |
| Partlife Cycle | Active | |
| Application Level | AEC-Q200 | |
| Application Level | AEC-Q200 | |
| Application | Automotive | |
| Application | Automotive | |
| Country of Origin | Japan | |
| Country of Origin | Japan | |
| Original Manufacturer | ALPS Alpine Co., Ltd. | |
| Original Manufacturer | ALPS Alpine Co., Ltd. | |
| Brand | ALPS | |
| Brand | ALPS | |
| Part Status | Active | |
| Part Status | Active | |
| Series | RKJXT1F | |
| Series | RKJXT1F | |
| Lead Free Or Not | Yes | |
| Lead Free Or Not | Yes | |
| Size | 17.00 x 17.00mm | |
| Size | 17.00 x 17.00mm | |
| Operating Force | 5N | |
| Operating Force | 5N | |
| Operating Life | 50000Cycles | |
| Operating Life | 50000Cycles | |
| Rated Voltage - Dc | 5V | |
| Rated Voltage - Dc | 5V | |
| Type | - | |
| Operating Temperature | -40~+85℃ | |
| Operating Temperature | -40~+85℃ | |
| Characteristic | - | |
| Height | 0.413"（10.50mm） | |
| Height | 0.413"（10.50mm） | |
| Contact Material | - |
