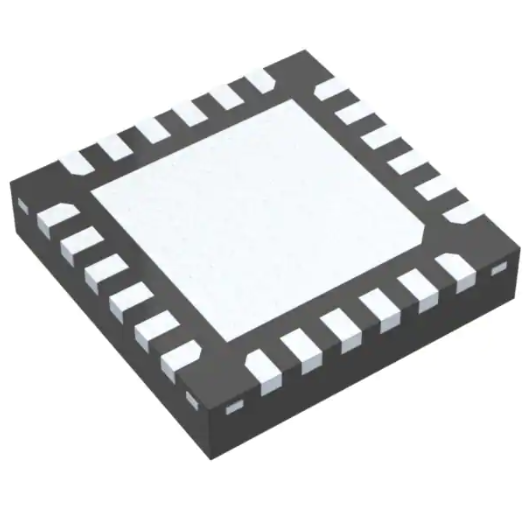

Images are for reference only

RF Other ICs and Modules ADI HMC370LP4E

  • Mfr Part #HMC370LP4E
  • ManufacturerADI
  • HQ Part #RF0000223
  • PackageQFN24_4X4MM_EP
  • Lead Time Ship immediately
  • DescriptionRF Wireless Misc x4 Active mult SMT, 14.4 - 16.4 GHz Fout

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Operating Temperature-40~+85℃
Package / CaseQFN24_4X4MM_EP
Installation TypeSMT
Operating Temperature-40°C~85°C
Package / Case-
Auxiliary Attributes-
RF Type-
Current Consumption55mA
Operating Frequency14.4~16.4GHz
Supply Voltage4.5~5.5V
Partlife CycleActive
Storage Temperature-65~+150℃
Lead Quantity24Pins
Country of OriginAmerica
Original ManufacturerAnalog Devices, Inc.
Size4.00 x 4.00mm
Lead Free Or NotYes
Part StatusActive
Supplier Device Packaging24-SMT(4x4)
Manufacturer'S Standard Lead Time-
Moisture Sensitivity Level (Msl)-
