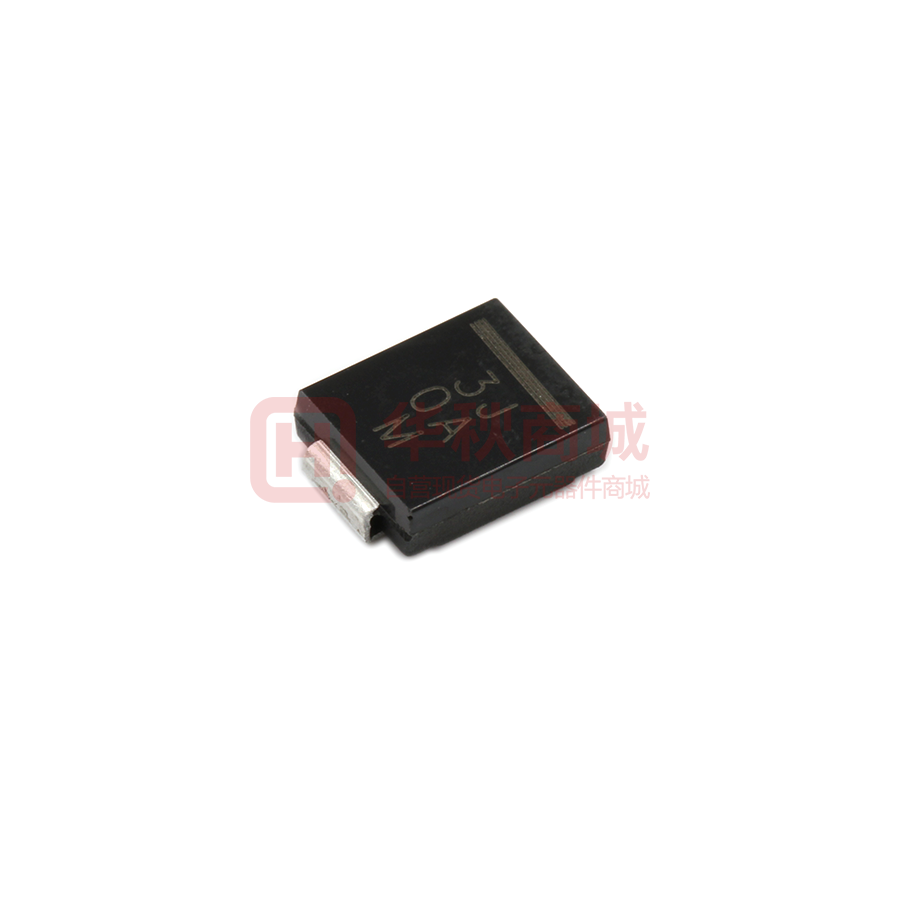

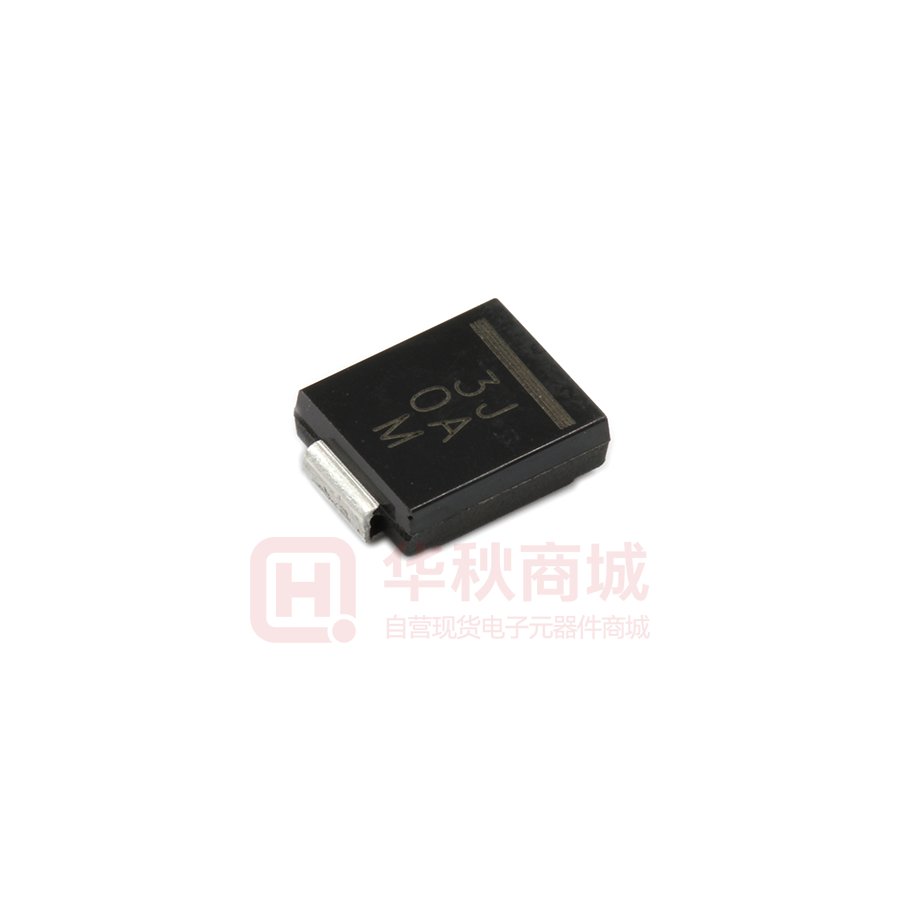

Images are for reference only


  • Mfr Part #VS-30BQ100-M3/9AT
  • ManufacturerVishay
  • HQ Part #DS0014575
  • PackageSMC(DO-214AB)
  • Lead Time Ship immediately
  • Description100V 3A 790mV@3A SMC Schottky Barrier Diodes (SBD) ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Reverse Peak Voltage (Maximum)100V
Diode ConfigurationSingle
Moisture Sensitivity Level (MSL)-
Diode Type-
Reverse Withstand Voltage Vr100V
Average Rectified Current3A
Forward Voltage Drop Vf790mV
Reverse Leakage Current Ir500µA
Installation TypeSMT
Forward Voltage VF Max900mV
Lead Quantity2pin
L x W/Size7.11 x 6.22mm
Country of OriginAmerica
Original ManufacturerVishay Intertechnology, Inc.
Part StatusActive
Lead Free Or NotYes
