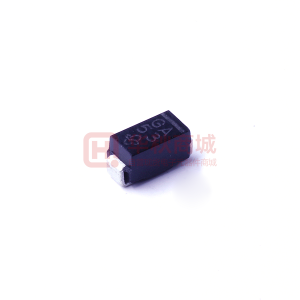

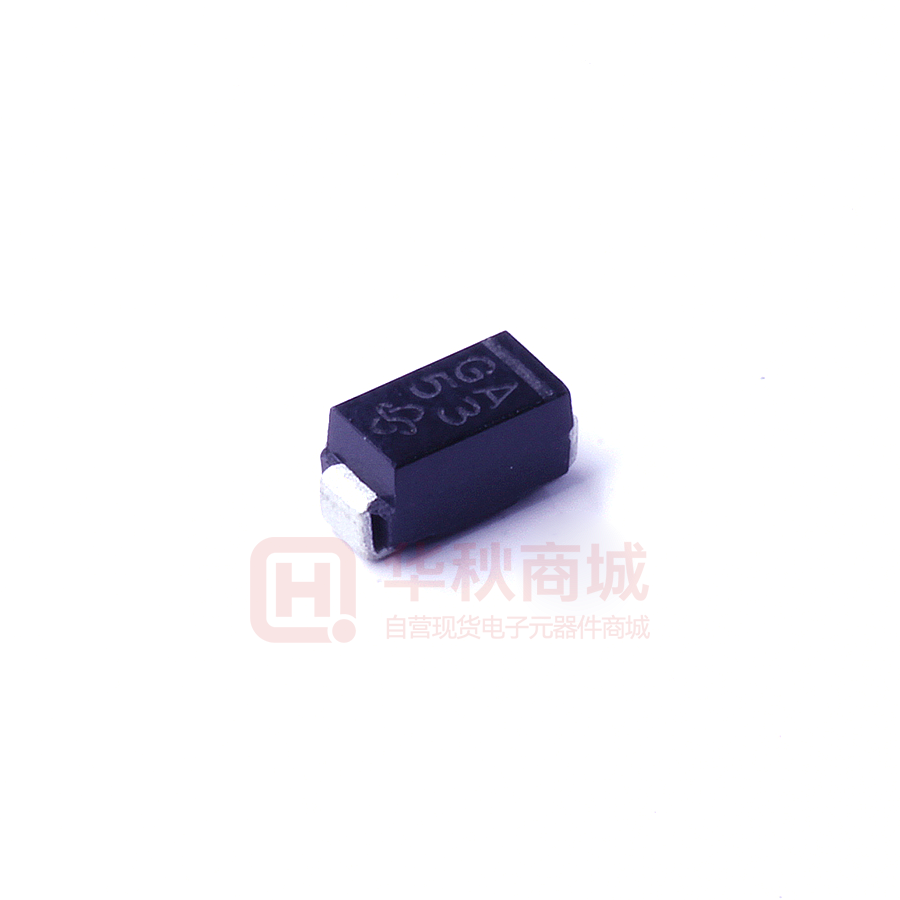

Images are for reference only

Rectifier Diodes Vishay GF1A-E3/67A

  • Mfr Part #GF1A-E3/67A
  • ManufacturerVishay
  • HQ Part #DS0003248
  • PackageDO214BA
  • Lead Time Ship immediately
  • Description1A 5uA@50V 50V 1.1V@1A DO-214BA Diodes - General Purpose ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Reverse Peak Voltage (Maximum)50V
Diode ConfigurationSingle
Operating Temperature Junction-65°C~175°C
Operating Temperature-65℃~175℃
Moisture Sensitivity Level (Msl)-
Diode Type-
Reverse Withstand Voltage Vr50V
Average Rectification Current If1A
Forward Voltage Drop Vf1.1V
Reverse Leakage Current Ir5μA
Supplier Device PackagingDO-214BA(GF1)
Package / CaseDO214BA
Installation TypeSMT
Forward Voltage VF Max1.1V
Storage Temperature-65~+175℃
Lead Quantity2pin
L x W/Size4.75 x 2.90mm
Country of OriginAmerica
Original ManufacturerVishay Intertechnology, Inc.
Total Capacitance C15pF
Manufacturer'S Standard Lead Time-
SeriesGF1A - GF1M
Part StatusActive
Lead Free Or Not-
