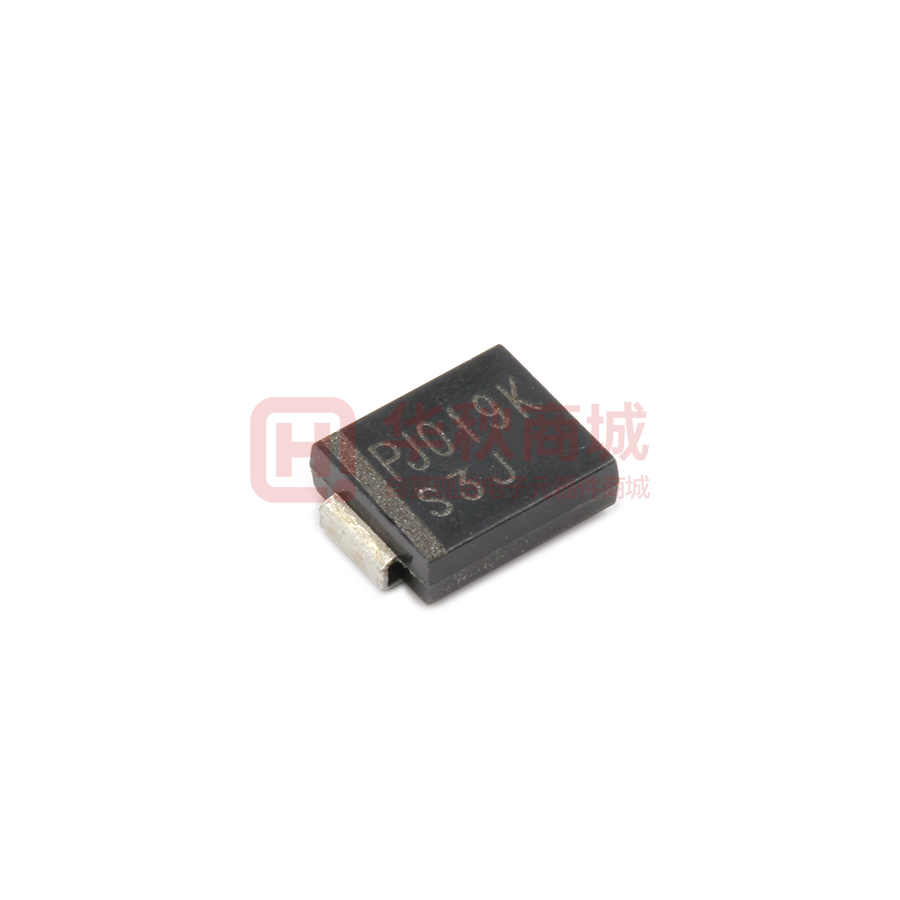

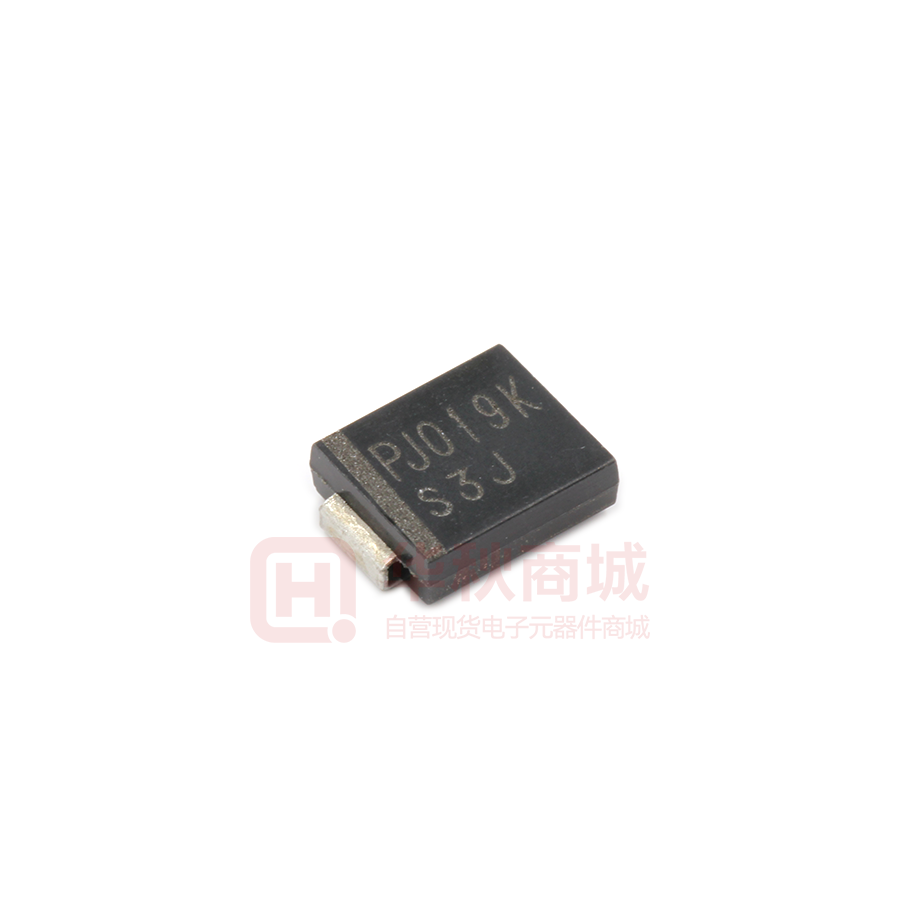

Images are for reference only


  • Mfr Part #S3J_R1_00001
  • ManufacturerPANJIT
  • HQ Part #DS0143153
  • PackageSMC(DO-214AB)
  • Lead Time Ship immediately
  • Description3A Single 1uA@600V 600V 1.2V@3A SMC(DO-214AB) Diodes - General Purpose ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Reverse Peak Voltage (Maximum)600V
Diode ConfigurationSingle
Operating Temperature-55℃~150℃
Reverse Withstand Voltage Vr600V
Average Rectified Current3A
Forward Voltage Drop Vf1.2V
Reverse Leakage Current Ir1µA
Installation TypeSMT
Forward Voltage VF Max1.2V
Partlife CycleActive
Lead Quantity2pin
L x W/Size7.11 x 6.22mm
Country of OriginChina Taiwan
Original ManufacturerPANJIT International Inc.
Forward Current3A
Total Capacitance C53pF
Part StatusActive
Lead Free Or NotYes
