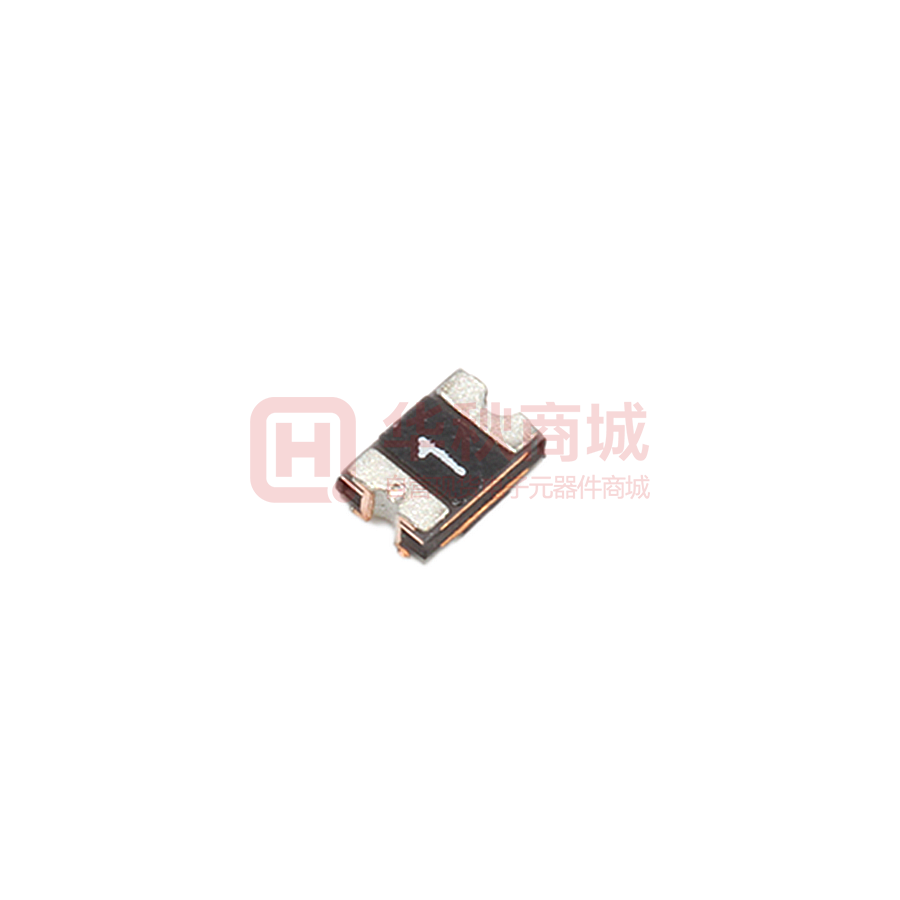

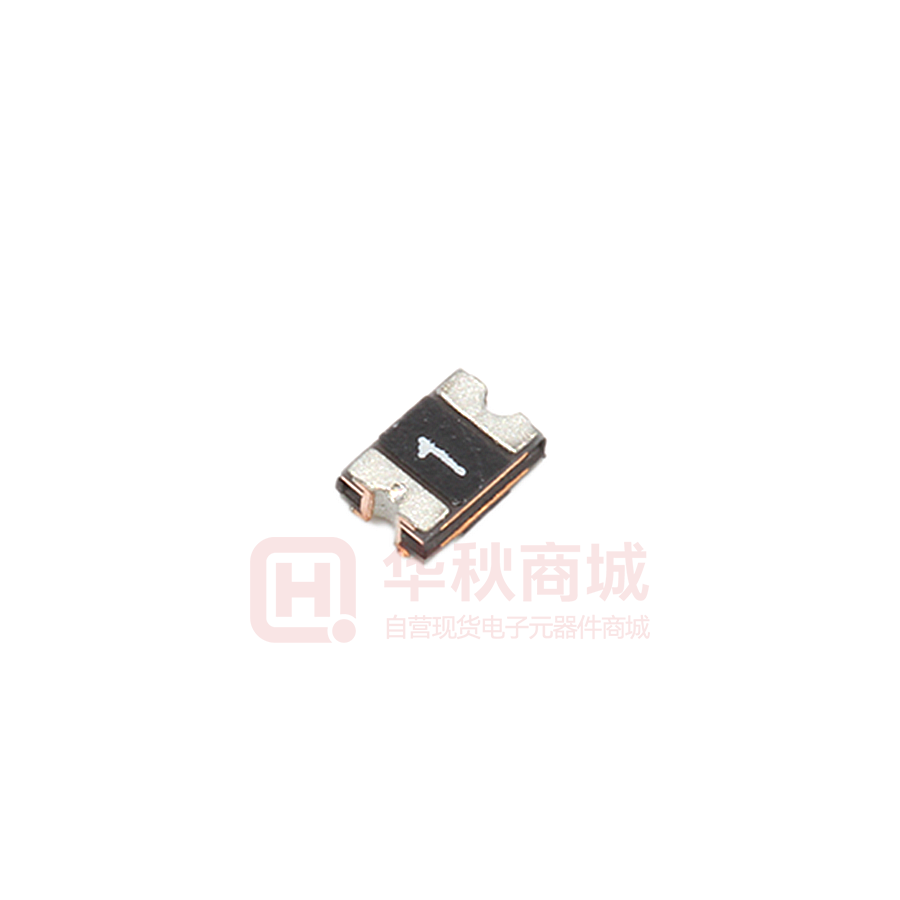

Images are for reference only

PTC Resettable Fuses RUILON SMD0805P005TF

  • Mfr Part #SMD0805P005TF
  • ManufacturerRUILON
  • HQ Part #PD0000169
  • Package0805
  • Lead Time Ship immediately
  • DescriptionMaximum voltage: 16V Maximum current: 100A Holding current: 50mA Trip current: 150mA

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Rated Voltage-DC16V
Resistance - Initial (Ri) (Min)1.5Ω
Fusing Time1.5s
Trip Action Current (It)150mA
Holding Current50mA
Maximum Operating Voltage16V
Dissipated Power (Max)500mW
Size2.20 x 1.50mm
Installation TypeSMT
Operating Temperature-40~+85℃
Package / Case0805
Circuit Breaker150mA
Partlife CycleActive
Country of OriginChina
Original ManufacturerShenzhen Ruilongyuan Electronics Co., Ltd.
Resistance After Tripping (R1) (Maximum)18Ω
Current - Maximum100A
Part StatusActive
Lead Free Or NotYes
Terms of Service
ShippingDelivery Period For stock parts, orders placed on HQonline from 8:00-16:00 will be dispatched on the same day
Once shipped, the transit time depends on the logistics provider you choose:
DHL Express, 3-5 days
FedEx International, 3-5 days
China Post Airmail, 15-45 days
Shipping RateShipping rate for your order can be found in the shopping cart.
Shipping OptionWe provide DHL, FedEx, and China Post Airmail shipping.
Shipping TrackingWe will notify you by email with a tracking number once the order is shipped. You can also find the tracking number in the order history.
Returning/WarrantyReturning HQonline only accepts return requests due to quality issues. Return requests should be submitted within 30 days of delivery of the goods, please contact customer service for a return authorization.
Parts should be unused and in original packaging.
The customer has to take charge of the shipping.
Warranty All HQonline purchases come with a 30-day money-back return policy, plus a 90-day HQonline warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by the customer to follow instructions, product modification, negligent or improper operation.
OrderingHow to Buy HQonline accepts online orders.
Add to cart > Check out > Submit order > Complete payment >Delivery
Payment PayPal, Payoneer, Credit Card includes Visa, Master, American Express, JCB, Discover.
Western Union, Bank Transfer, Payoneer, AliExpress.
5 In Stock
Minimum1 Mutiple1
Unit Price$ 0.0557
Ext Price$ 0
Add to Cart
Buy Now
Pricing (USD)
QtyUnit PriceExt Price
1+$0.03429 $0.03429
