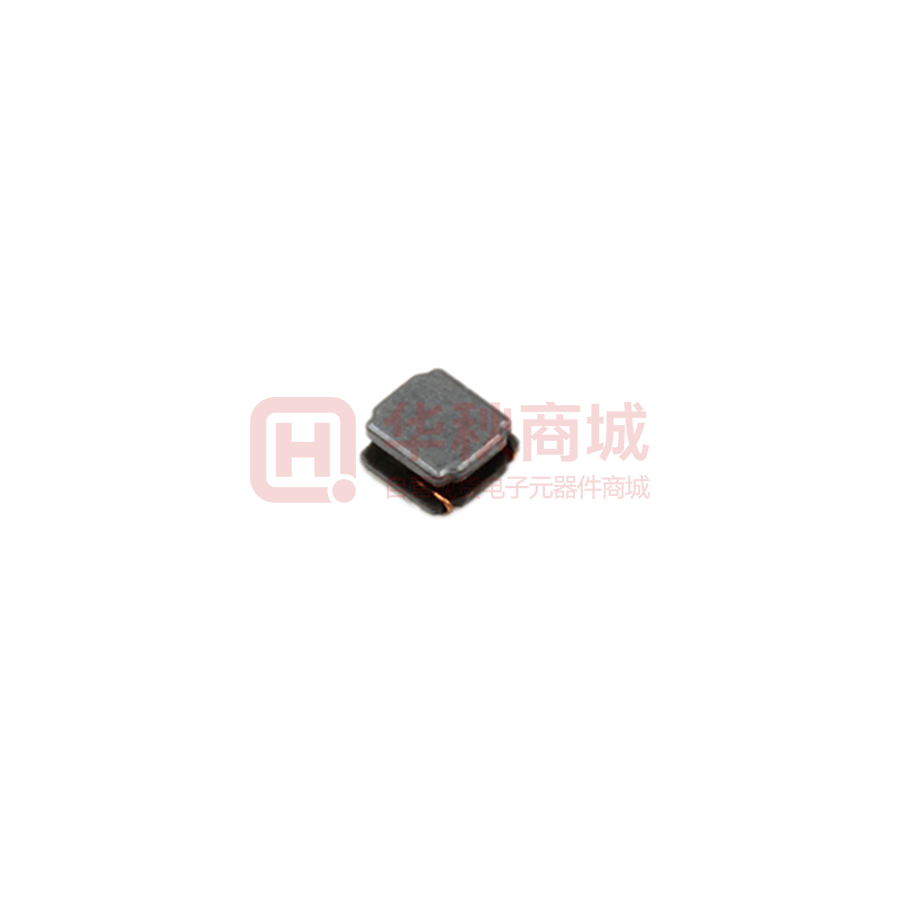

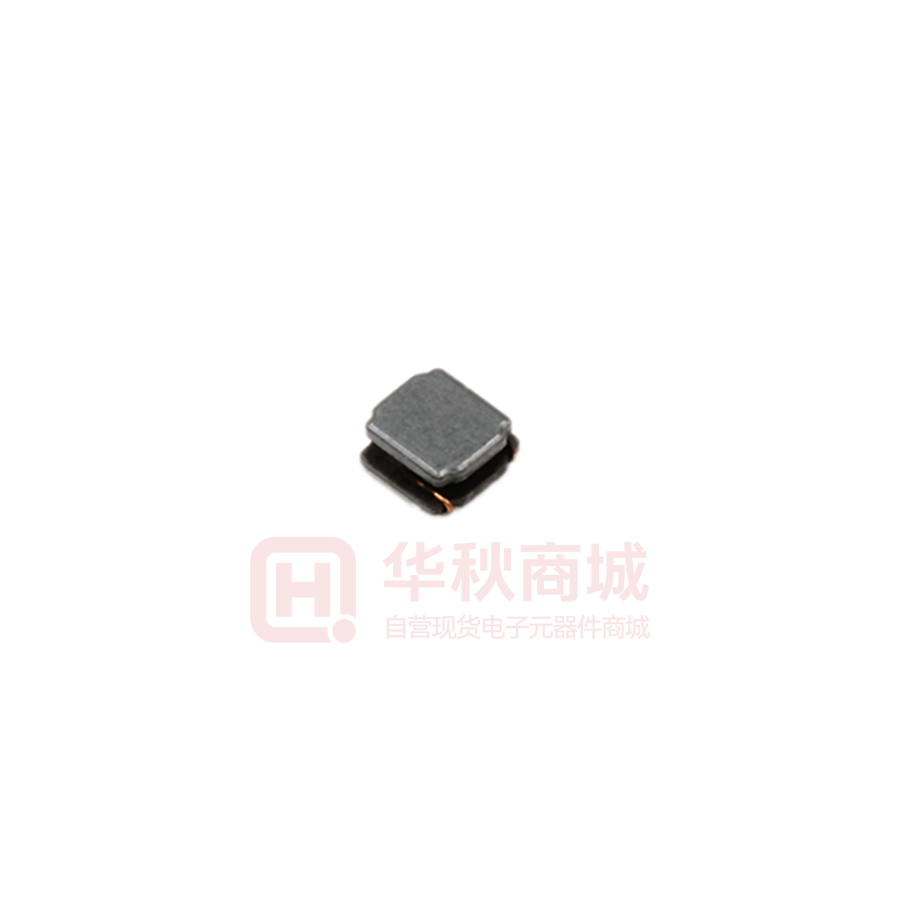

Images are for reference only

Power Inductors Sunlord SWPA3015S2R2NT

  • Mfr Part #SWPA3015S2R2NT
  • ManufacturerSunlord
  • HQ Part #IN0024521
  • Package3015
  • Lead Time Ship immediately
  • DescriptionPower Inductors 2.2µH ±30% 3015 1.50mm 3.00 x 3.00mm 78mΩ 1.6A 86MHz

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Dc Resistance (Dcr)78mΩ
Operating Temperature-40~+125℃
Self Resonance Frequency86MHz
Saturation Current1.6A
Rated Current1.6A
Height1.50mm
Size3.00 x 3.00mm
Package / Case3015
Installation TypeSMT
Accuracy±30%
Sensibility2.2µH
PackingTape/Reel
Lead Spacing2.25mm
Packaging TechnologyWirewound
Partlife CycleActive
Application LevelIndustrial
MaterialFerrite
Storage Temperature-40~+125℃
Lead Quantity2Pin
Country of OriginChina
CertificationRoHS
Original ManufacturerShenzhen Sunlord Electronics Co., Ltd.
BrandSunlord
SeriesSWPA
Lead Free Or NotYes
0Industrial
Maximum Installation Height1.5mm
Grade-
Shield-
Type-
